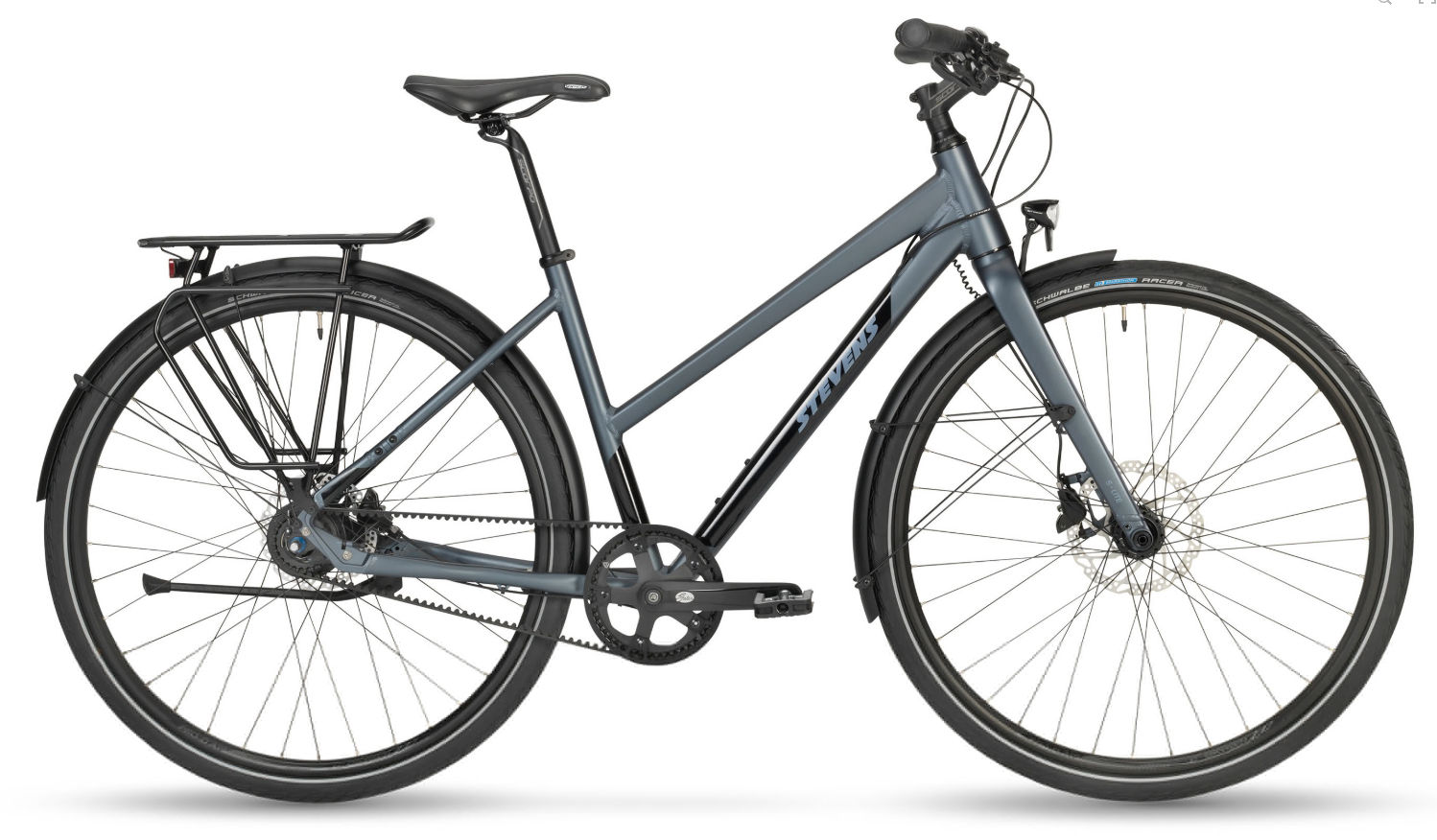

2019 Stevens Courier Luxe Womens geometry
Full frame geometry for the 2019 Stevens Courier Luxe Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 569 | 387 | 73 | 69.5 | 140 | 564 | 460 | 611 | 70 | 628 | 457 | 1081 | 45 |
| 50 | 607 | 390 | 73 | 69.5 | 180 | 577 | 500 | 639 | 70 | 643 | 457 | 1087 | 45 |
| 54 | 637 | 393 | 73 | 70 | 210 | 590 | 540 | 657 | 70 | 652 | 457 | 1105 | 45 |
All measurements in millimetres unless marked (°) for angles.
