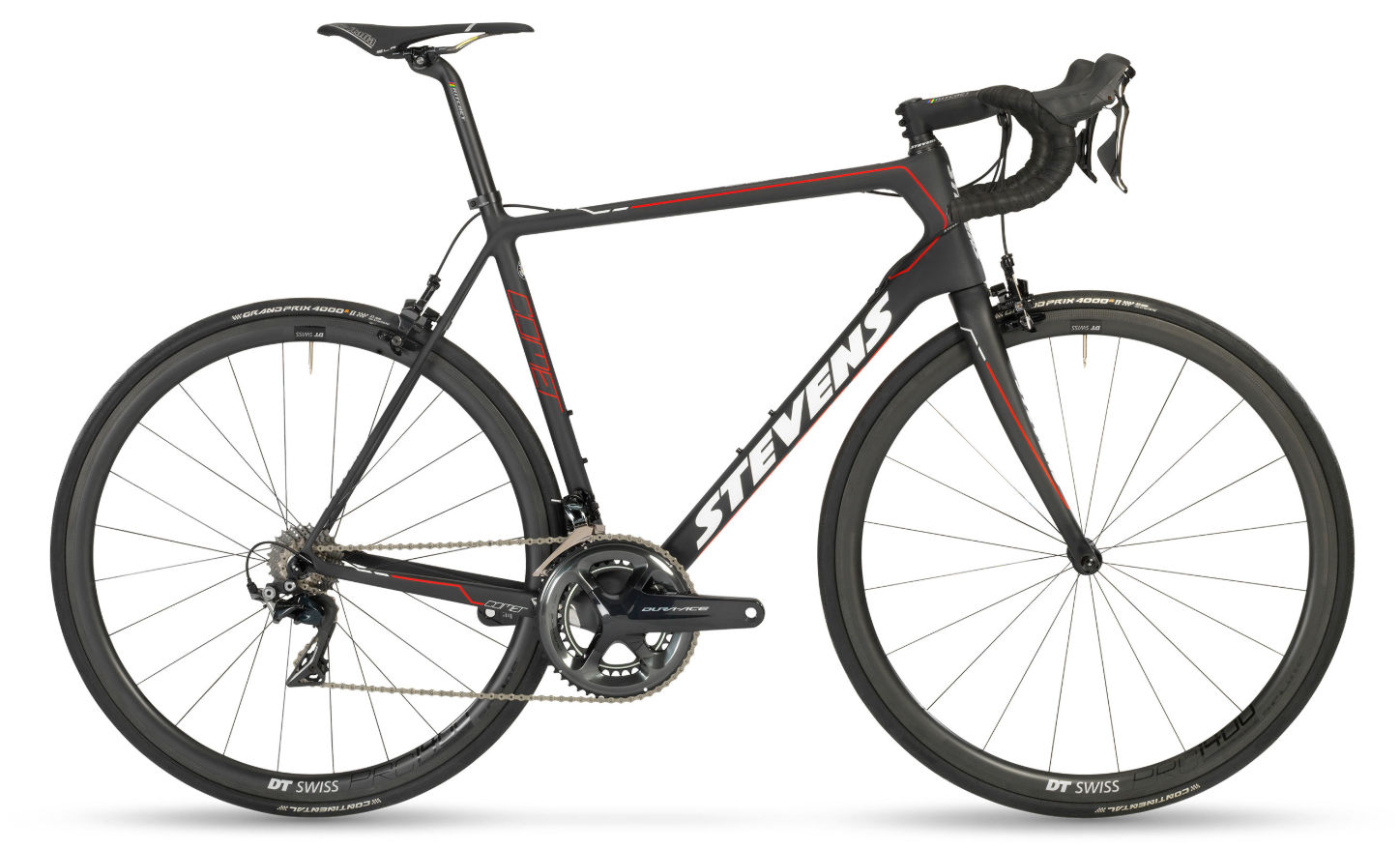

2019 Stevens Comet MK II geometry
Full frame geometry for the 2019 Stevens Comet MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 517 | 379 | 75 | 71.5 | 115 | 518 | 486 | 726 | 70 | 405 | 978 | 43 |
| 52 | 523 | 380 | 74 | 72 | 120 | 530 | 498 | 735 | 70 | 405 | 976 | 43 |
| 54 | 544 | 382 | 74 | 72.5 | 140 | 538 | 524 | 759 | 70 | 405 | 981 | 43 |
| 56 | 567 | 387 | 73.5 | 73.5 | 160 | 555 | 553 | 782 | 70 | 405 | 983 | 43 |
| 58 | 585 | 397 | 73.5 | 73.5 | 180 | 570 | 564 | 795 | 70 | 405 | 993 | 43 |
| 60 | 610 | 404 | 73.5 | 73.5 | 205 | 585 | 607 | 834 | 70 | 405 | 1013 | 43 |
All measurements in millimetres unless marked (°) for angles.
