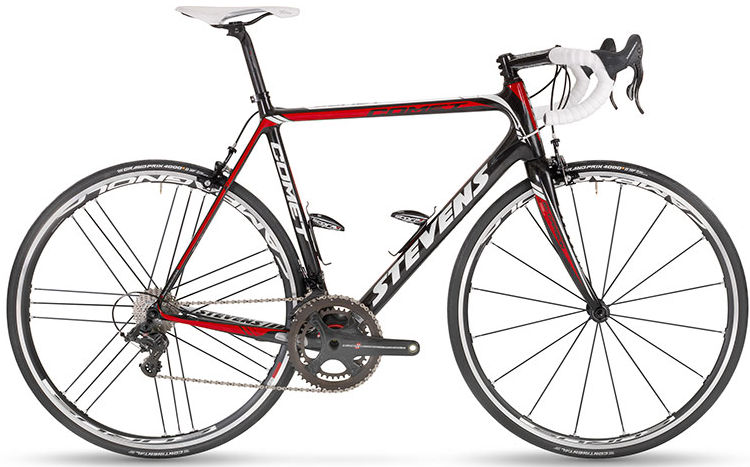

2015 Stevens Comet MK I geometry
Full frame geometry for the 2015 Stevens Comet MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 512 | 380 | 75 | 71.5 | 110 | 518 | 486 | 724 | 70 | 577 | 405 | 972 | 43 |
| 52 | 518 | 393 | 75 | 72 | 115 | 533 | 498 | 734 | 70 | 588 | 405 | 983 | 43 |
| 54 | 541 | 387 | 74 | 73 | 135 | 542 | 524 | 756 | 70 | 580 | 405 | 975 | 43 |
| 56 | 562 | 389 | 73.5 | 73.5 | 155 | 555 | 553 | 781 | 70 | 583 | 405 | 978 | 43 |
| 58 | 581 | 398 | 73.5 | 73.5 | 175 | 570 | 582 | 799 | 70 | 598 | 405 | 993 | 43 |
| 60 | 605 | 406 | 73.5 | 73.5 | 200 | 585 | 607 | 827 | 70 | 613 | 405 | 1008 | 43 |
| 62 | 619 | 403 | 73 | 73.5 | 215 | 592 | 619 | 837 | 70 | 614 | 405 | 1009 | 43 |
All measurements in millimetres unless marked (°) for angles.
