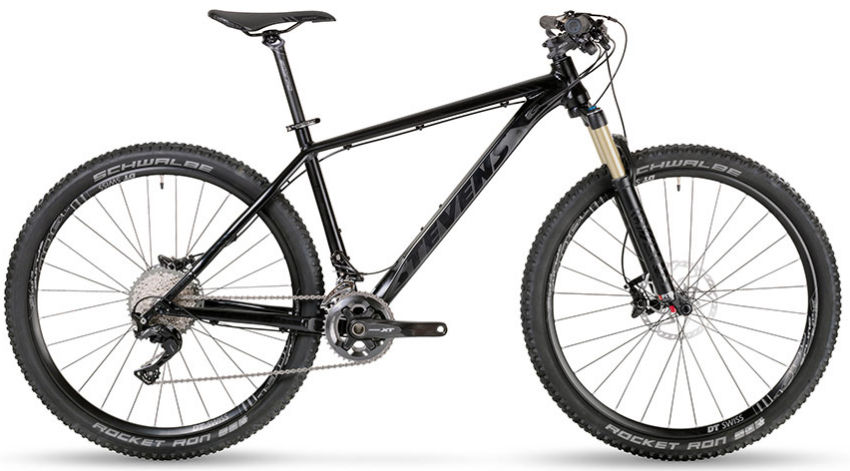

2015 Stevens Colorado 401 27.5 geometry
Full frame geometry for the 2015 Stevens Colorado 401 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 557 | 410 | 74.5 | 69 | 90 | 565 | 360 | 686 | 50 | 652 | 425 | 1072 | 42 |
| 18 | 562 | 449 | 74.5 | 69 | 95 | 605 | 457 | 751 | 50 | 693 | 425 | 1113 | 42 |
| 20 | 576 | 465 | 74.5 | 69 | 110 | 625 | 508 | 786 | 50 | 714 | 425 | 1134 | 42 |
All measurements in millimetres unless marked (°) for angles.
