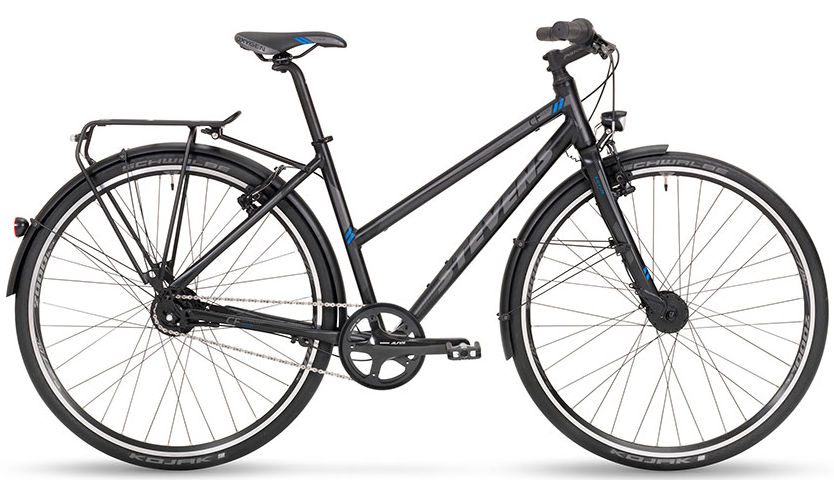

2015 Stevens City Flight Tour Lady geometry
Full frame geometry for the 2015 Stevens City Flight Tour Lady, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 564 | 387 | 72.5 | 70 | 140 | 566 | 460 | 625 | 70 | 624 | 454 | 1068 | 50 |
| 50 | 602 | 387 | 72.5 | 70 | 180 | 578 | 500 | 633 | 70 | 634 | 454 | 1078 | 50 |
| 54 | 632 | 390 | 72.5 | 70.5 | 210 | 590 | 540 | 641 | 70 | 645 | 454 | 1090 | 50 |
All measurements in millimetres unless marked (°) for angles.
