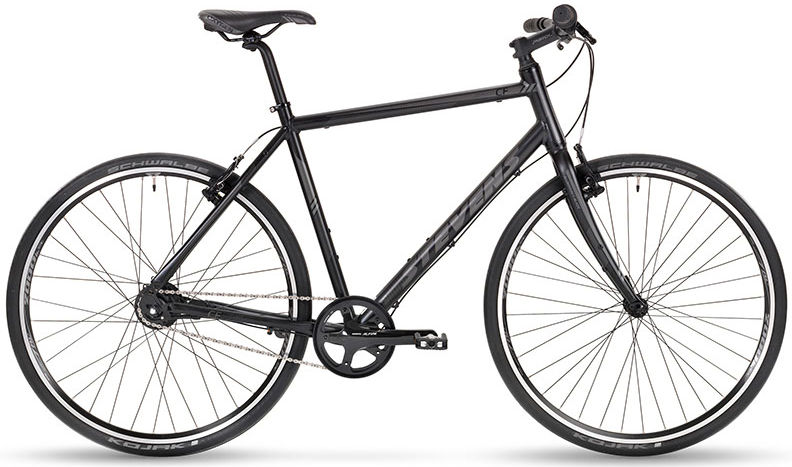

2015 Stevens City Flight MK I geometry
Full frame geometry for the 2015 Stevens City Flight MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 555 | 389 | 73 | 70 | 130 | 560 | 480 | 729 | 70 | 622 | 454 | 1067 | 50 |
| 52 | 583 | 390 | 72.5 | 70 | 160 | 575 | 520 | 772 | 70 | 634 | 454 | 1078 | 50 |
| 55 | 604 | 398 | 72.5 | 70.5 | 180 | 590 | 550 | 798 | 70 | 644 | 454 | 1089 | 50 |
| 58 | 625 | 407 | 72.5 | 71 | 200 | 605 | 580 | 826 | 70 | 655 | 454 | 1099 | 50 |
| 61 | 646 | 413 | 72.5 | 71.5 | 220 | 617 | 610 | 855 | 70 | 651 | 454 | 1106 | 50 |
All measurements in millimetres unless marked (°) for angles.
