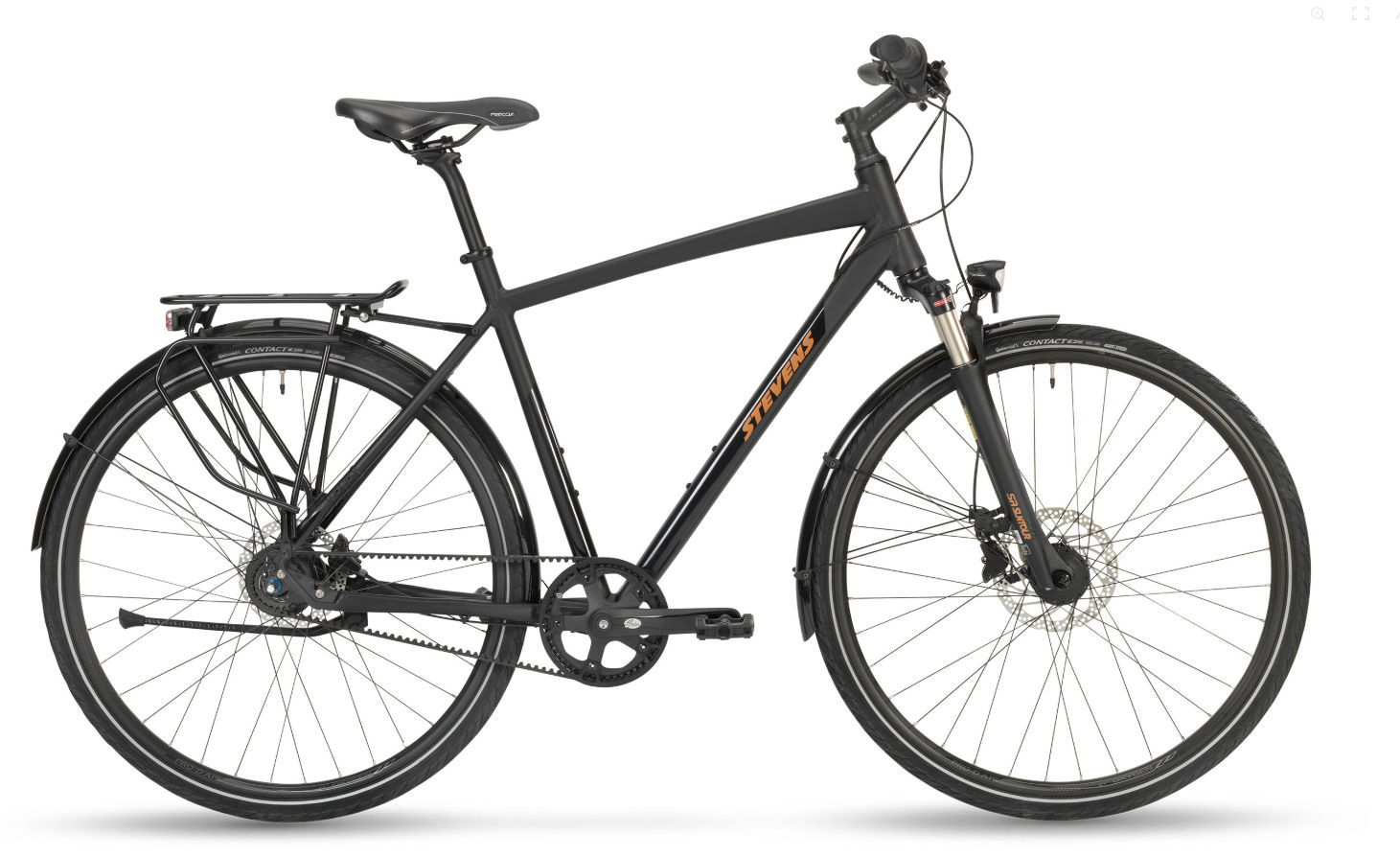

2019 Stevens Boulevard Luxe geometry
Full frame geometry for the 2019 Stevens Boulevard Luxe, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 579 | 386 | 73.5 | 69.5 | 110 | 560 | 480 | 737 | 65 | 630 | 457 | 1084 | 45 |
| 52 | 604 | 383 | 72.5 | 70 | 135 | 575 | 520 | 768 | 65 | 630 | 457 | 1084 | 45 |
| 55 | 623 | 392 | 72.5 | 70 | 155 | 590 | 550 | 792 | 65 | 646 | 457 | 1100 | 45 |
| 58 | 646 | 400 | 72.5 | 71 | 175 | 605 | 580 | 819 | 65 | 651 | 457 | 1105 | 45 |
| 61 | 667 | 406 | 72.5 | 71.5 | 195 | 617 | 610 | 845 | 65 | 658 | 457 | 1112 | 45 |
All measurements in millimetres unless marked (°) for angles.
