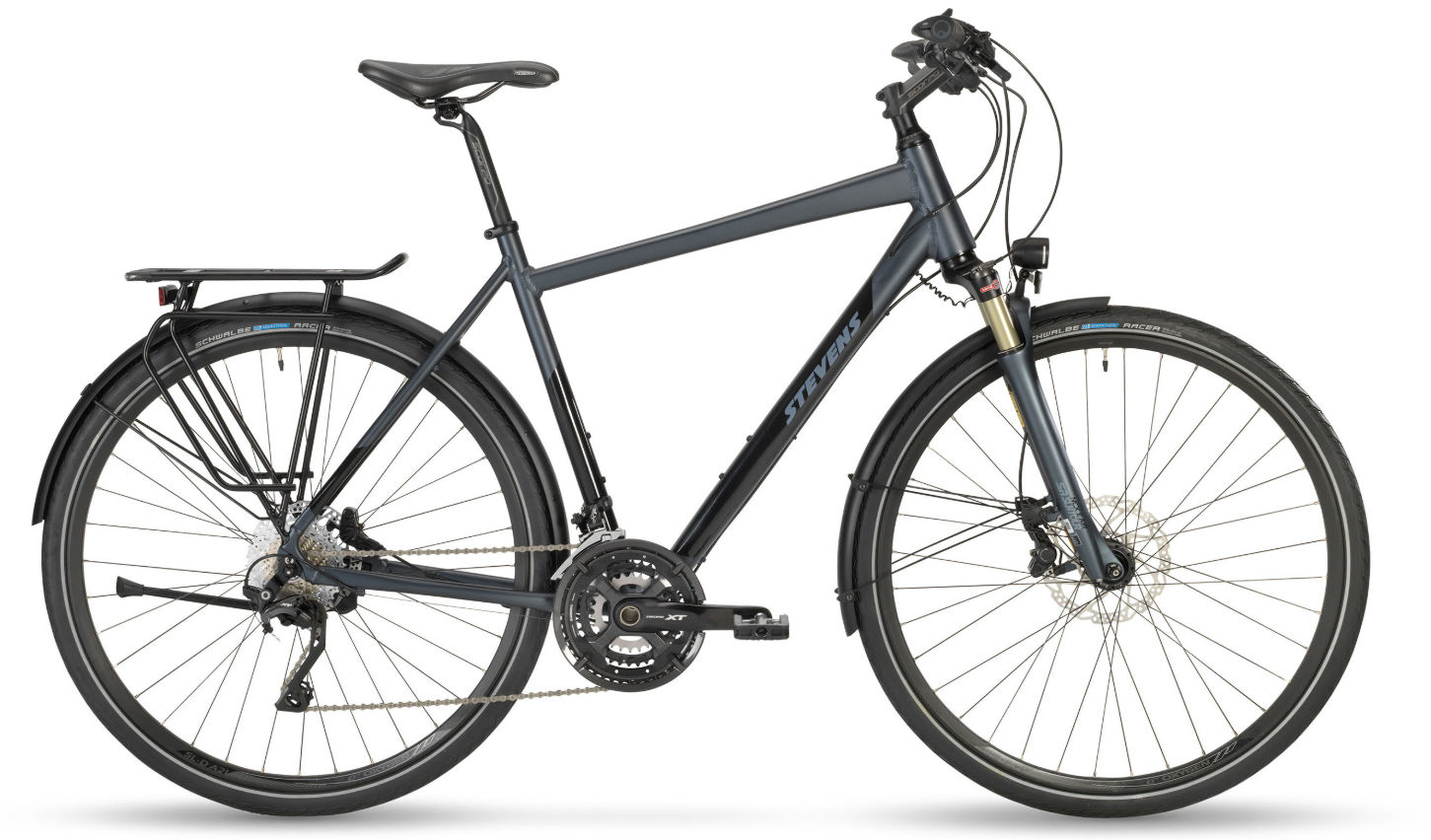

2019 Stevens Avantgarde geometry
Full frame geometry for the 2019 Stevens Avantgarde, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 580 | 385 | 73.5 | 69 | 110 | 558 | 480 | 734 | 65 | 626 | 450 | 1068 | 42 |
| 52 | 605 | 383 | 72.5 | 70 | 135 | 574 | 520 | 767 | 65 | 627 | 450 | 1069 | 42 |
| 55 | 624 | 391 | 72.5 | 70 | 155 | 589 | 550 | 793 | 65 | 643 | 450 | 1085 | 42 |
| 58 | 647 | 400 | 72.5 | 71 | 175 | 605 | 580 | 819 | 65 | 648 | 450 | 1090 | 42 |
| 61 | 668 | 405 | 72.5 | 71 | 195 | 617 | 610 | 846 | 65 | 655 | 450 | 1097 | 42 |
All measurements in millimetres unless marked (°) for angles.
