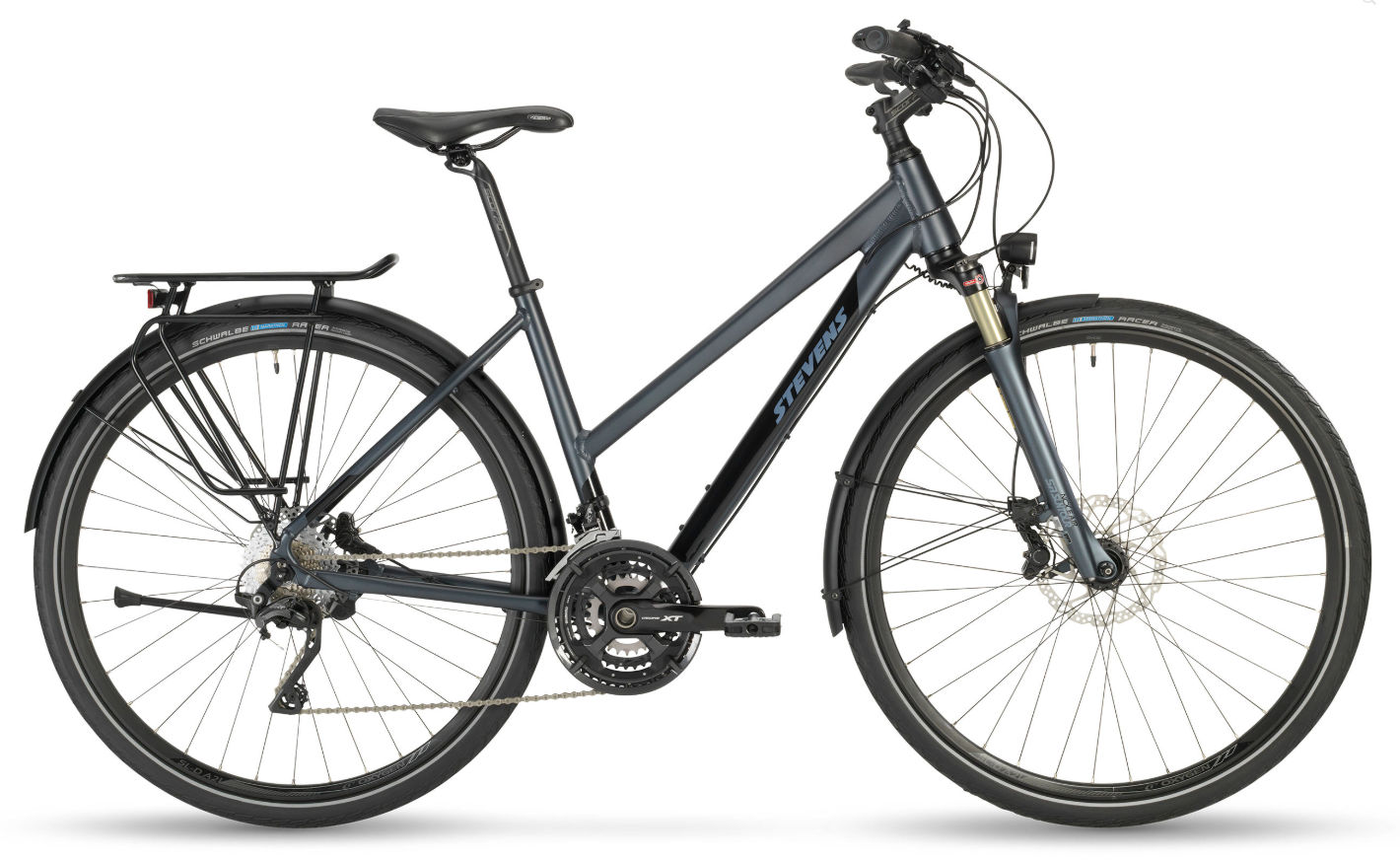

2019 Stevens Avantgarde Womens geometry
Full frame geometry for the 2019 Stevens Avantgarde Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 596 | 383 | 73 | 70 | 125 | 566 | 460 | 618 | 65 | 624 | 450 | 1066 | 42 |
| 50 | 624 | 386 | 73 | 70 | 155 | 578 | 500 | 625 | 65 | 637 | 450 | 1079 | 42 |
| 54 | 657 | 388 | 73 | 70 | 190 | 590 | 540 | 653 | 65 | 651 | 450 | 1093 | 42 |
All measurements in millimetres unless marked (°) for angles.
