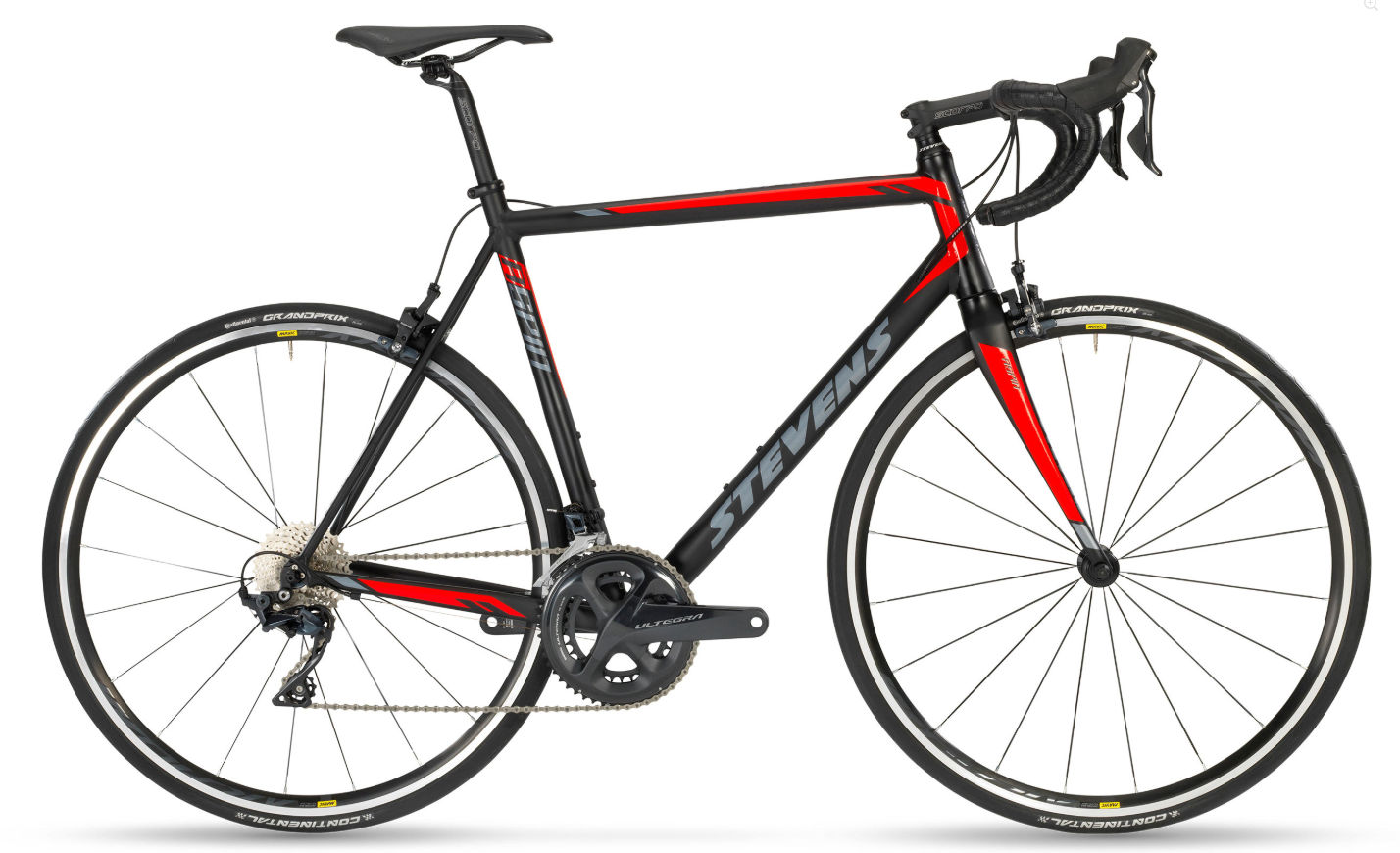

2019 Stevens Aspin MK II geometry

Name: 2019 Stevens Aspin MK II
Brand: Stevens

Full frame geometry for the 2019 Stevens Aspin MK II, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)
50	529	369	74.5	71.5	130	516	500	716	70	410	974	45
52	542	382	74	72.5	140	537	520	751	70	410	981	45
54	549	387	74	73	145	544	540	766	70	410	984	45
56	559	400	74	73.5	155	560	560	776	70	410	996	45
58	584	404	74	73.5	180	572	580	803	70	410	1008	45
60	603	407	74	73.5	200	580	600	823	70	410	1015	45
62	622	412	74	73.5	220	590	620	842	70	410	1026	45
64	636	420	74	73.5	235	602	640	859	70	410	1038	45

All measurements in millimetres unless marked (°) for angles.
