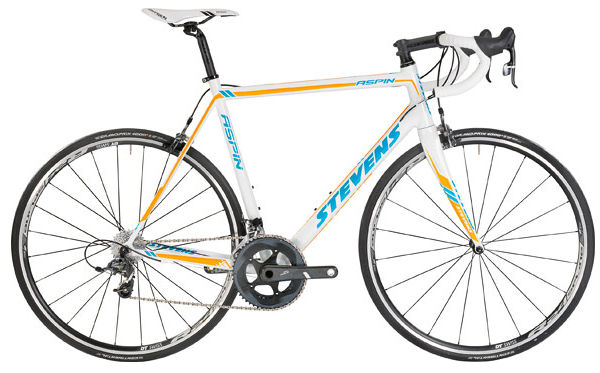

2015 Stevens Aspin MK I geometry

Name: 2015 Stevens Aspin MK I
Brand: Stevens

Full frame geometry for the 2015 Stevens Aspin MK I, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)
50	511	374	74	71.5	111	518	489	722	70	573	410	973	45
52	524	380	74	72.5	121	531	497	731	70	575	410	975	45
54	544	381	74	73	141	541	524	755	70	581	410	981	45
56	561	395	74	73.5	156	556	552	783	70	592	410	991	45
58	585	402	74	73.5	181	569	583	810	70	605	410	1005	45
60	604	408	74	73.5	201	582	603	829	70	617	410	1017	45
62	623	413	74	73.5	221	588	619	846	70	624	410	1024	45
64	638	416	74	73.5	236	599	640	864	70	635	410	1035	45

All measurements in millimetres unless marked (°) for angles.
