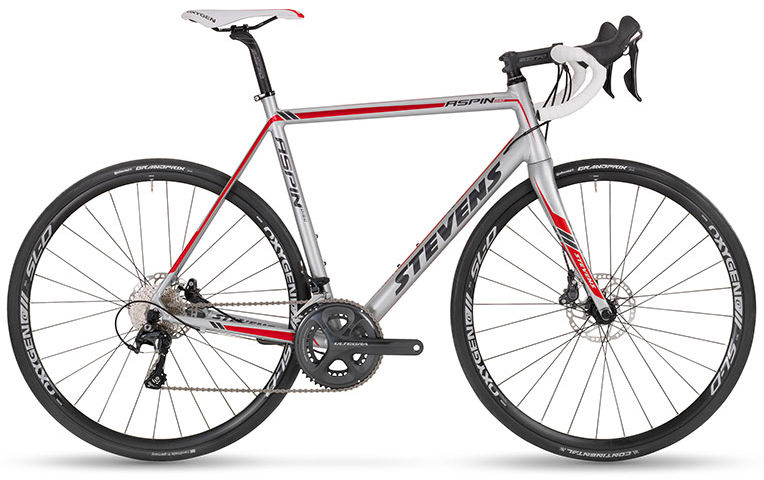

2015 Stevens Aspin Disc geometry

Name: 2015 Stevens Aspin Disc
Brand: Stevens

Full frame geometry for the 2015 Stevens Aspin Disc, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)
50	511	374	74.5	71.5	111	518	489	722	70	573	410	973	45
52	524	380	74	72.5	121	531	497	731	70	575	410	975	45
54	544	381	74	73	141	541	524	755	70	581	410	981	45
56	561	390	73.5	73.5	156	556	552	778	70	586	410	992	45
58	585	396	73.5	73.5	181	569	583	806	70	600	410	1005	45
60	604	403	73.5	73.5	201	582	603	823	70	612	410	1017	45
62	623	404	73.5	73.5	221	588	619	843	70	618	410	1024	45

All measurements in millimetres unless marked (°) for angles.
