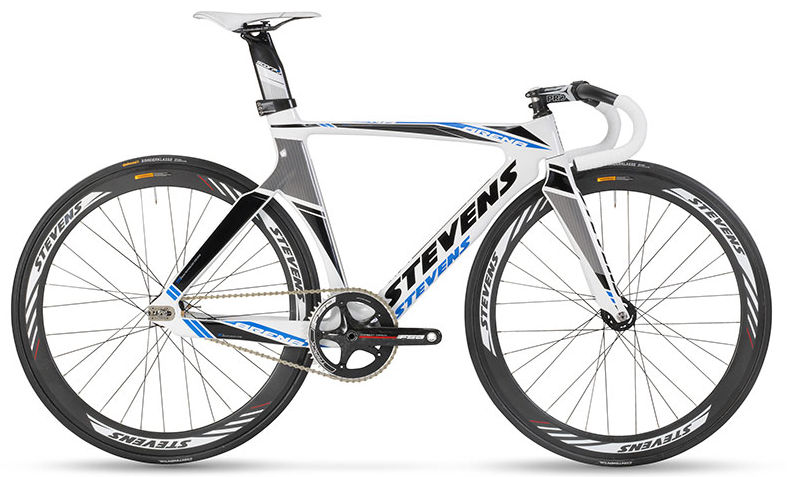

2015 Stevens Arena geometry
Full frame geometry for the 2015 Stevens Arena, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 469 | 366 | 75.5 | 72 | 90 | 496 | 515 | 738 | 45 | 546 | 389 | 938 | 38 |
| 52 | 470 | 384 | 74 | 72.5 | 90 | 526 | 515 | 743 | 45 | 560 | 389 | 952 | 38 |
| 55 | 470 | 384 | 73 | 73 | 90 | 556 | 515 | 748 | 45 | 580 | 389 | 965 | 38 |
| 57 | 472 | 409 | 73 | 73 | 120 | 576 | 525 | 758 | 45 | 600 | 389 | 985 | 38 |
All measurements in millimetres unless marked (°) for angles.
