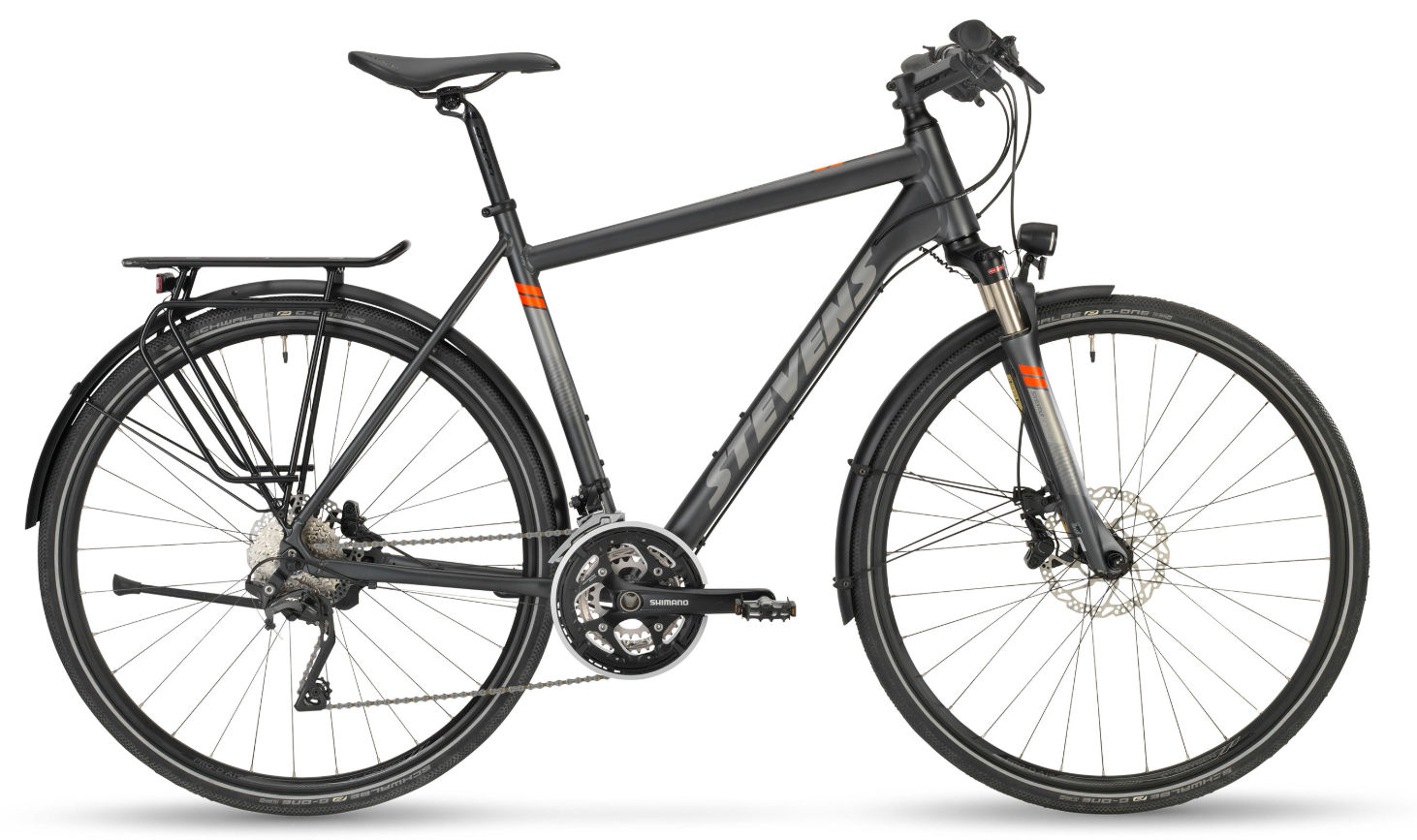

2019 Stevens 7X Tour geometry
Full frame geometry for the 2019 Stevens 7X Tour, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 588 | 388 | 73 | 70.5 | 125 | 566 | 480 | 750 | 55 | 611 | 445 | 1063 | 42 |
| 52 | 595 | 389 | 72.5 | 71 | 130 | 576 | 520 | 777 | 55 | 621 | 445 | 1061 | 42 |
| 55 | 615 | 397 | 72.5 | 71.5 | 150 | 590 | 550 | 802 | 55 | 631 | 445 | 1071 | 42 |
| 58 | 637 | 401 | 72 | 72 | 170 | 605 | 580 | 825 | 55 | 635 | 445 | 1076 | 42 |
| 61 | 655 | 402 | 72 | 72 | 190 | 615 | 610 | 851 | 55 | 644 | 445 | 1083 | 42 |
All measurements in millimetres unless marked (°) for angles.
