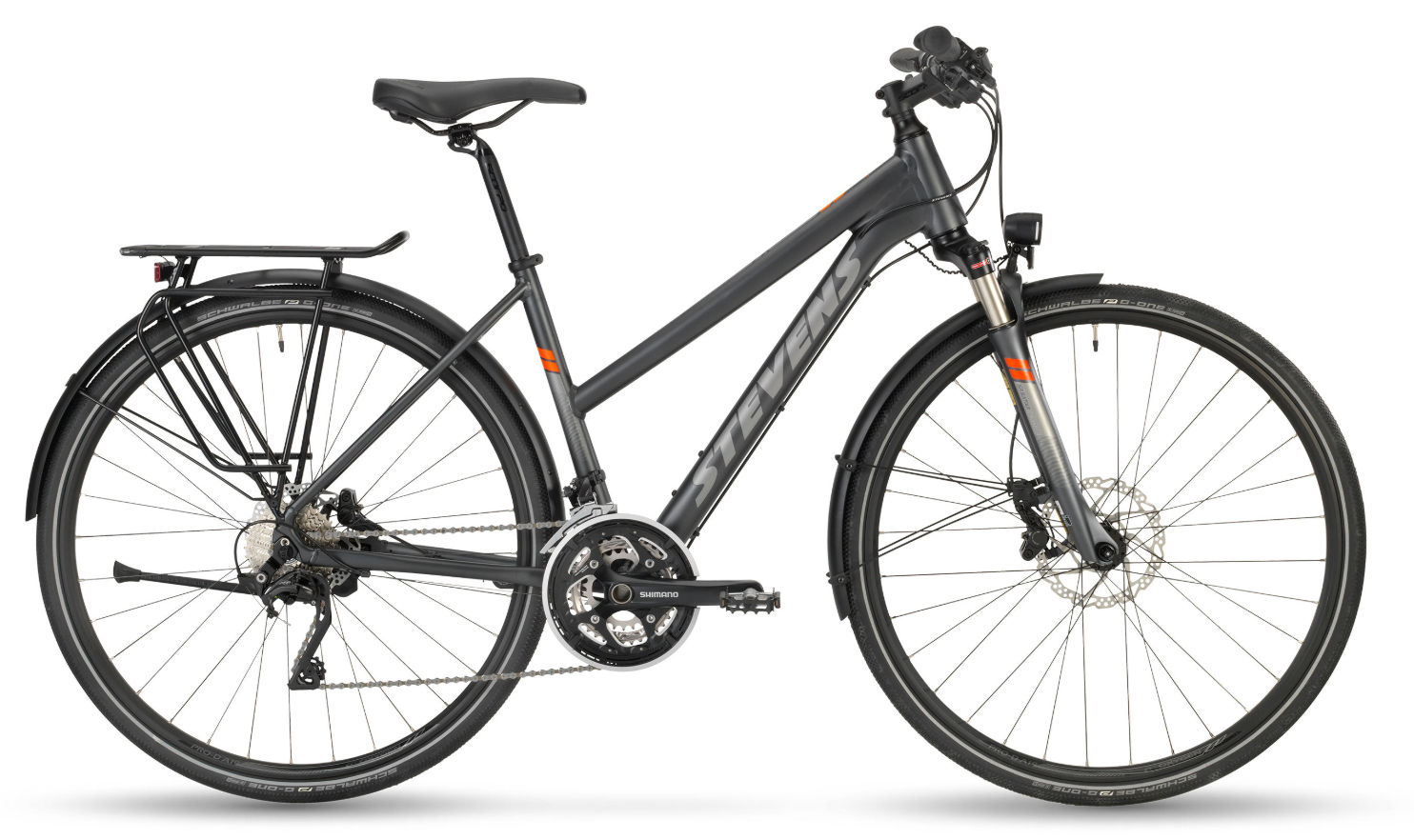

2019 Stevens 7X Tour Womens geometry
Full frame geometry for the 2019 Stevens 7X Tour Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 592 | 389 | 73 | 70.5 | 130 | 570 | 470 | 668 | 55 | 626 | 445 | 1064 | 42 |
| 50 | 624 | 384 | 72.5 | 70.5 | 160 | 580 | 500 | 677 | 55 | 632 | 445 | 1071 | 42 |
| 54 | 640 | 398 | 72.5 | 70.5 | 180 | 600 | 540 | 683 | 55 | 652 | 445 | 1092 | 42 |
All measurements in millimetres unless marked (°) for angles.
