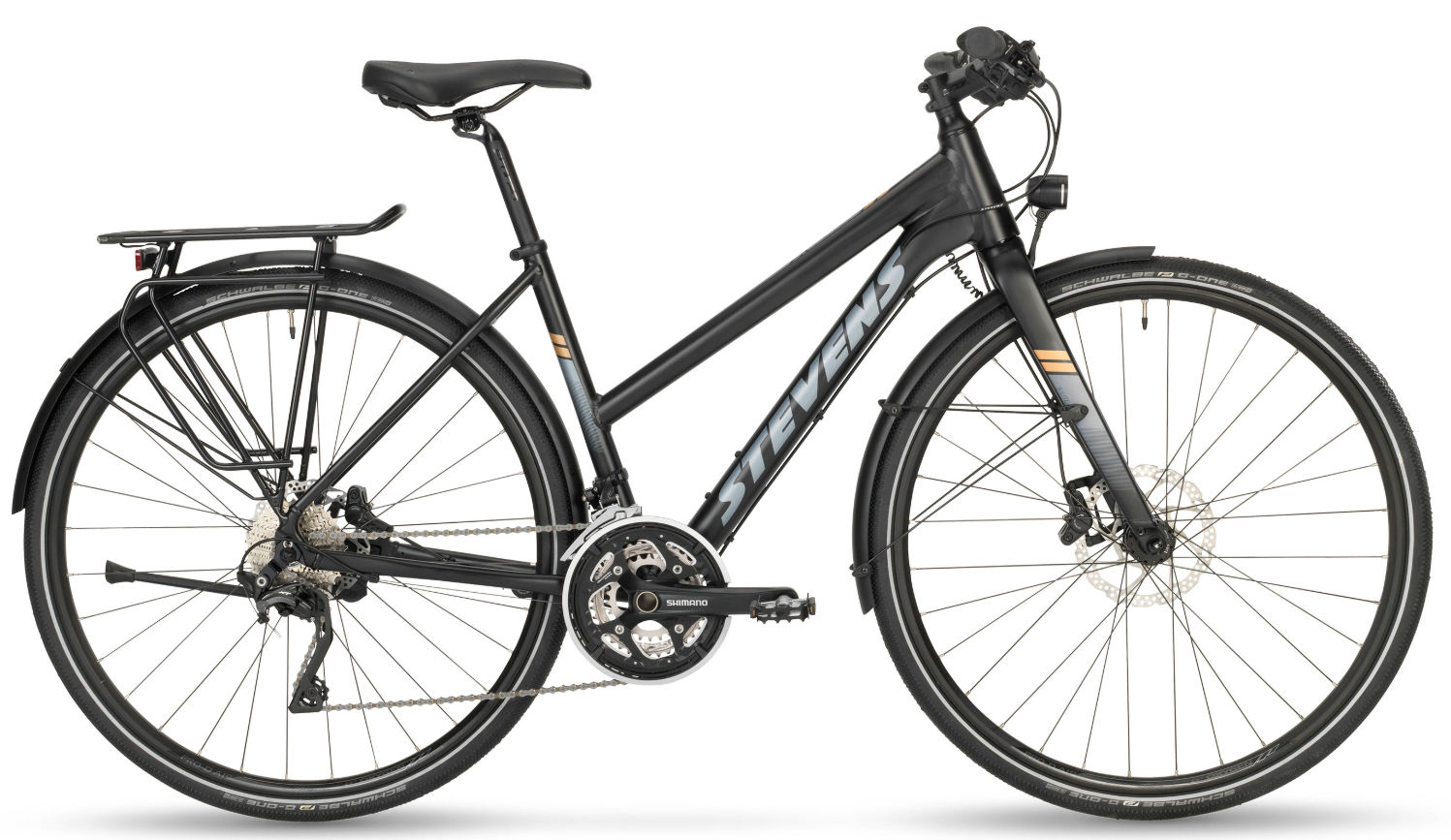

2019 Stevens 7X Lite Tour Womens geometry
Full frame geometry for the 2019 Stevens 7X Lite Tour Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 568 | 389 | 72.5 | 70.5 | 140 | 568 | 460 | 546 | 65 | 618 | 445 | 1055 | 45 |
| 50 | 601 | 390 | 72.5 | 70.5 | 175 | 579 | 500 | 662 | 65 | 630 | 445 | 1067 | 45 |
| 54 | 630 | 401 | 72.5 | 70.5 | 205 | 599 | 540 | 681 | 65 | 651 | 445 | 1088 | 45 |
All measurements in millimetres unless marked (°) for angles.
