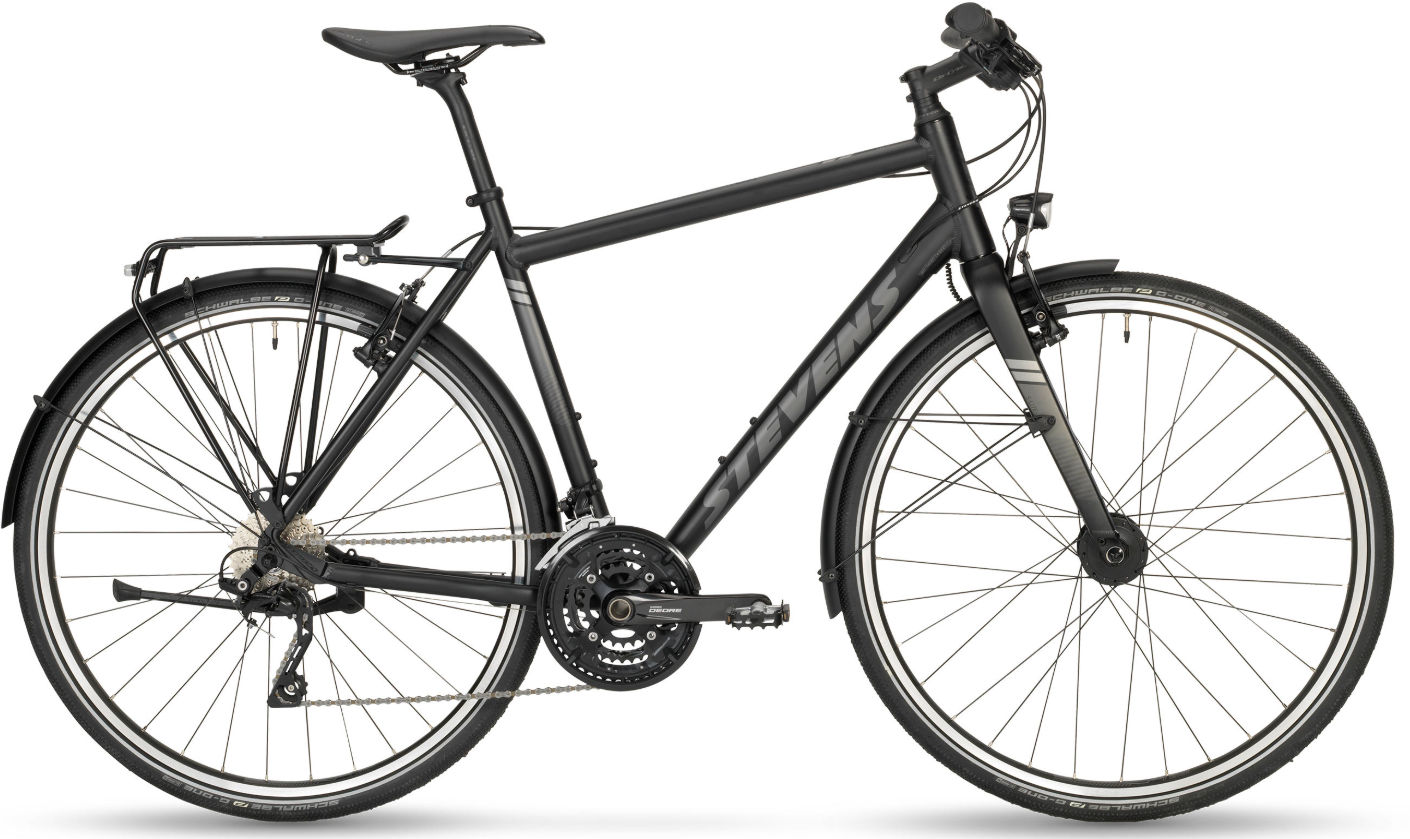

2019 Stevens 6X Lite Tour geometry
Full frame geometry for the 2019 Stevens 6X Lite Tour, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 555 | 392 | 72.5 | 71 | 130 | 567 | 485 | 728 | 65 | 612 | 445 | 1049 | 45 |
| 52 | 579 | 393 | 72.5 | 71 | 155 | 576 | 520 | 768 | 65 | 622 | 445 | 1058 | 45 |
| 55 | 600 | 400 | 72.5 | 71.5 | 175 | 590 | 550 | 794 | 65 | 630 | 445 | 1067 | 45 |
| 58 | 626 | 402 | 72 | 72 | 200 | 605 | 580 | 821 | 65 | 635 | 445 | 1071 | 45 |
| 61 | 649 | 404 | 72 | 72 | 225 | 615 | 610 | 844 | 65 | 645 | 445 | 1081 | 45 |
| 64 | 664 | 409 | 72 | 72 | 240 | 625 | 640 | 867 | 65 | 654 | 445 | 1091 | 45 |
All measurements in millimetres unless marked (°) for angles.
