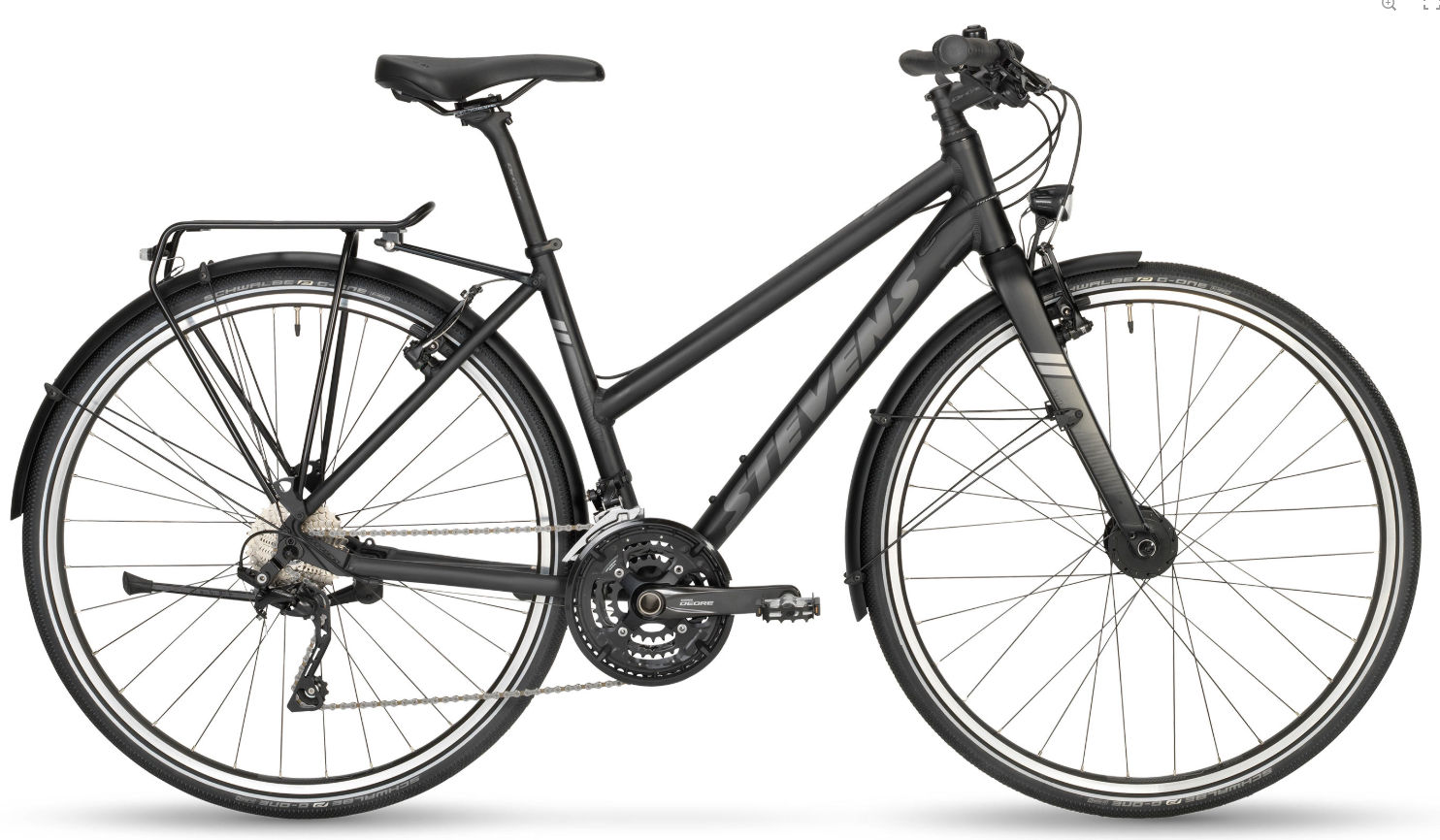

2019 Stevens 6X Lite Tour Womens geometry
Full frame geometry for the 2019 Stevens 6X Lite Tour Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 563 | 386 | 72.5 | 70.5 | 140 | 563 | 460 | 643 | 65 | 613 | 445 | 1050 | 45 |
| 50 | 596 | 391 | 72.5 | 70.5 | 175 | 579 | 500 | 655 | 65 | 630 | 445 | 1067 | 45 |
| 54 | 624 | 402 | 72.5 | 70.5 | 205 | 599 | 540 | 666 | 65 | 651 | 445 | 1083 | 45 |
| 58 | 643 | 420 | 72.5 | 70.5 | 225 | 623 | 580 | 672 | 65 | 676 | 445 | 1113 | 45 |
All measurements in millimetres unless marked (°) for angles.
