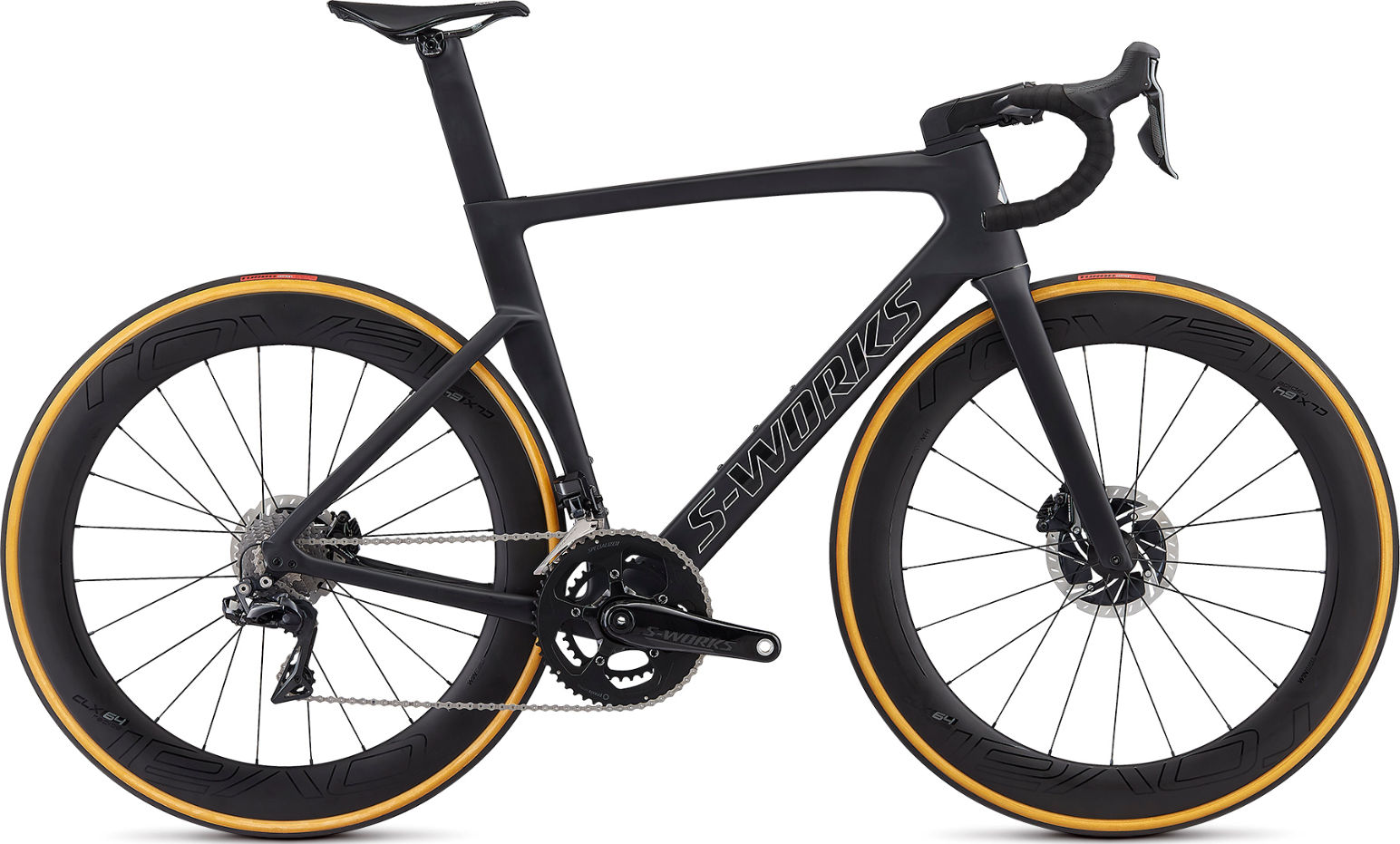

2018 Specialized Venge MKIII geometry
Full frame geometry for the 2018 Specialized Venge MKIII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 504 | 378 | 75.5 | 71.8 | 104 | 508 | 455 | 736 | 74 | 410 | 972 | 47 | 63 |
| 52 | 517 | 383 | 74 | 72.5 | 115 | 531 | 480 | 756 | 74 | 410 | 975 | 47 | 58 |
| 54 | 534 | 387 | 74 | 73 | 133 | 540 | 495 | 773 | 72 | 410 | 978 | 44 | 58 |
| 56 | 555 | 398 | 73.5 | 73.5 | 153 | 562 | 518 | 795 | 72 | 410 | 991 | 44 | 55 |
| 58 | 581 | 405 | 73.5 | 73.5 | 180 | 577 | 537 | 817 | 72 | 410 | 1005 | 44 | 55 |
| 61 | 602 | 411 | 73 | 74 | 200 | 595 | 567 | 841 | 72 | 410 | 1012 | 44 | 52 |
All measurements in millimetres unless marked (°) for angles.
