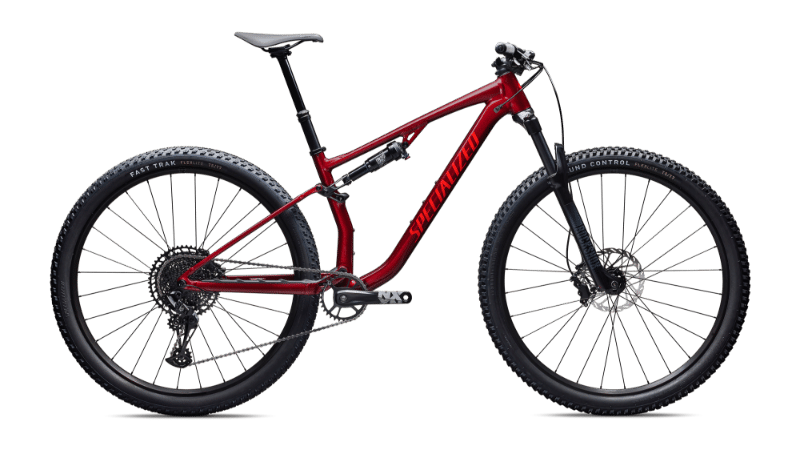

2026 Specialized Chisel geometry
Full frame geometry for the 2026 Specialized Chisel, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 593 | 415 | 75.5 | 67 | 95 | 565 | 392 | 777 | 30 | 706 | 437 | 1141 | 44 | 113 |
| XS | 602.3 | 390 | 75.5 | 67 | 95 | 527 | 375 | 756 | 40 | 682 | 437 | 1115 | 44 | 113 |
| M | 606 | 445 | 75.5 | 67 | 110 | 602 | 410 | 777 | 30 | 742 | 437 | 1177 | 44 | 113 |
| L | 620 | 470 | 75.5 | 67 | 125 | 634 | 450 | 787 | 30 | 773 | 437 | 1208 | 44 | 113 |
| XL | 629 | 495 | 75.5 | 67 | 135 | 664 | 500 | 790 | 30 | 802 | 437 | 1237 | 44 | 113 |
All measurements in millimetres unless marked (°) for angles.
