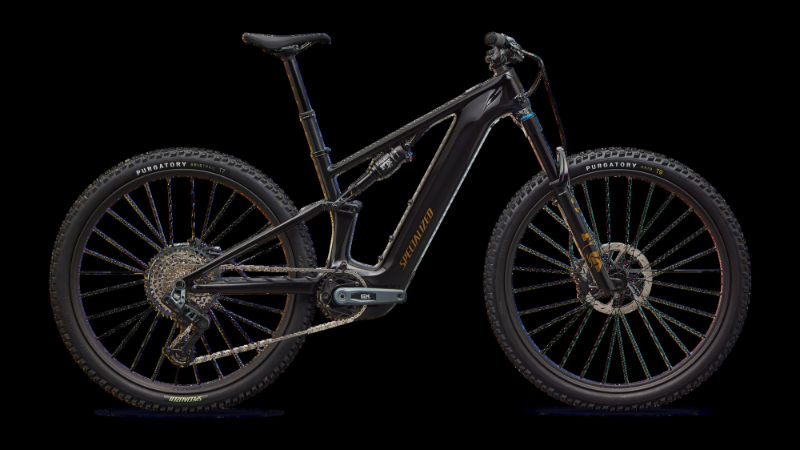

2027 Specialized Turbo Levo R geometry
Full frame geometry for the 2027 Specialized Turbo Levo R, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S1 | 602 | 400 | 77 | 64.8 | 95 | 539 | 375 | 761 | 36 | 716 | 447 | 1160 | 44 | 128 |
| S2 | 607 | 420 | 77 | 65 | 100 | 560 | 385 | 763 | 36 | 736 | 447 | 1181 | 44 | 126 |
| S3 | 616 | 450 | 77 | 65 | 110 | 592 | 405 | 773 | 36 | 770 | 447 | 1215 | 44 | 126 |
| S4 | 630 | 475 | 77 | 65 | 125 | 620 | 425 | 783 | 36 | 801 | 447 | 1246 | 44 | 126 |
| S5 | 644 | 500 | 77 | 65 | 140 | 649 | 445 | 793 | 36 | 833 | 447 | 1277 | 44 | 126 |
| S6 | 657 | 525 | 77 | 65 | 155 | 677 | 465 | 803 | 36 | 863 | 447 | 1309 | 44 | 126 |
All measurements in millimetres unless marked (°) for angles.
