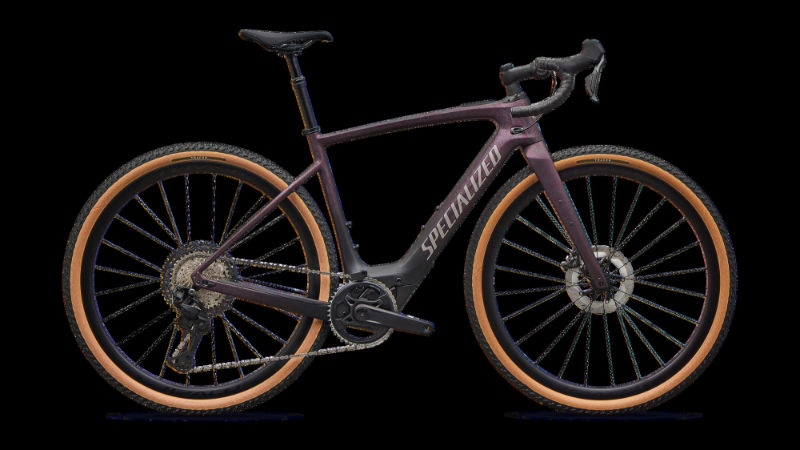

2027 Specialized Turbo Creo 2 geometry
Full frame geometry for the 2027 Specialized Turbo Creo 2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 578 | 365 | 74 | 71 | 90 | 531 | 410 | 731 | 80 | 600.1 | 435 | 1022 | 55 | 62 |
| 52 | 578 | 374 | 74 | 71 | 90 | 540 | 430 | 743 | 80 | 609 | 435 | 1031 | 55 | 62 |
| 54 | 595 | 383 | 74 | 71 | 108 | 554 | 470 | 773 | 80 | 623.8 | 435 | 1046 | 55 | 62 |
| 56 | 607 | 392 | 73.5 | 71 | 120 | 572 | 500 | 793 | 80 | 636.6 | 435 | 1059 | 55 | 62 |
| 58 | 638 | 401 | 73.5 | 71 | 153 | 590 | 530 | 824 | 80 | 656.2 | 435 | 1079 | 55 | 62 |
| 61 | 663 | 410 | 73 | 71 | 180 | 613 | 560 | 852 | 80 | 673.8 | 435 | 1097 | 55 | 62 |
All measurements in millimetres unless marked (°) for angles.
