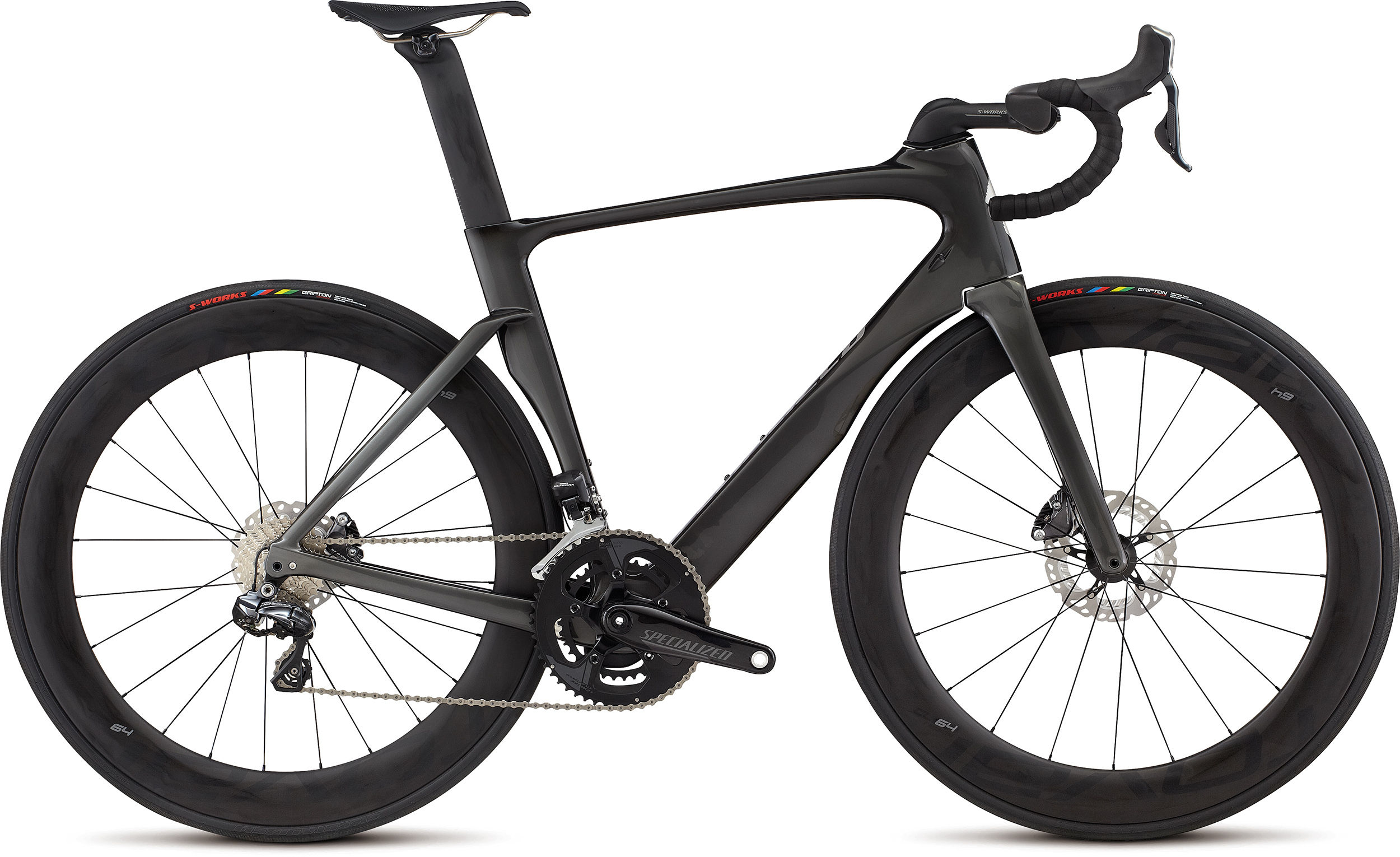

2018 Specialized Venge MKII Vias Disc S-Works geometry
Full frame geometry for the 2018 Specialized Venge MKII Vias Disc S-Works, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 505 | 386 | 75.5 | 72.2 | 110 | 518 | 441 | 730 | 72 | 575 | 410 | 974 | 44 | 63 |
| 52 | 526 | 385 | 74 | 73 | 130 | 536 | 461 | 755 | 72 | 575 | 410 | 974 | 44 | 58 |
| 54 | 543 | 386 | 73.5 | 73 | 150 | 547 | 481 | 775 | 69 | 581 | 410 | 981 | 44 | 58 |
| 56 | 564 | 395 | 73.2 | 73.5 | 170 | 565 | 501 | 795 | 69 | 592 | 410 | 992 | 44 | 55 |
| 58 | 591 | 401 | 73 | 73.5 | 200 | 581 | 524 | 826 | 68 | 606 | 410 | 1006 | 44 | 55 |
| 61 | 612 | 408 | 72.5 | 74 | 220 | 600 | 554 | 850 | 68 | 613 | 410 | 1014 | 44 | 52 |
All measurements in millimetres unless marked (°) for angles.
