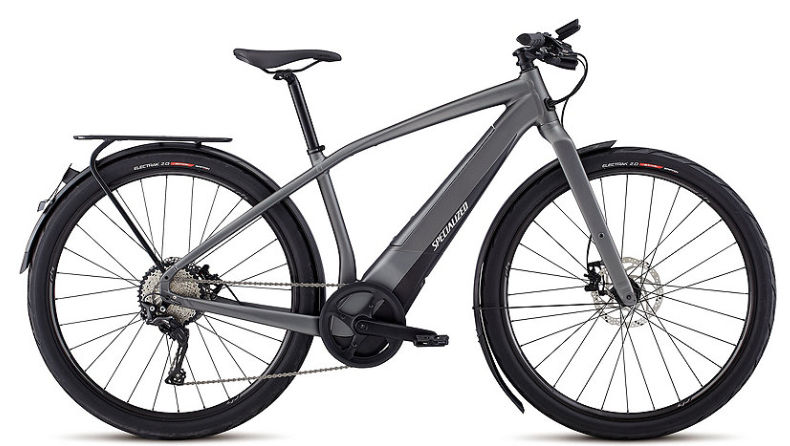

2018 Specialized Turbo Vado 5.0 Mens geometry
Full frame geometry for the 2018 Specialized Turbo Vado 5.0 Mens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Head angle (°) | Head tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 619 | 406 | 70 | 135 | 450 | 800 | 70 | 657 | 478 | 1126 | 44 | 86 |
| S | 619 | 396 | 70 | 135 | 400 | 762 | 70 | 647 | 478 | 1116 | 44 | 86 |
| L | 629 | 428 | 70 | 145 | 500 | 833 | 70 | 682 | 478 | 1152 | 44 | 86 |
| XL | 652 | 441 | 70 | 170 | 550 | 875 | 70 | 704 | 478 | 1173 | 44 | 86 |
All measurements in millimetres unless marked (°) for angles.
