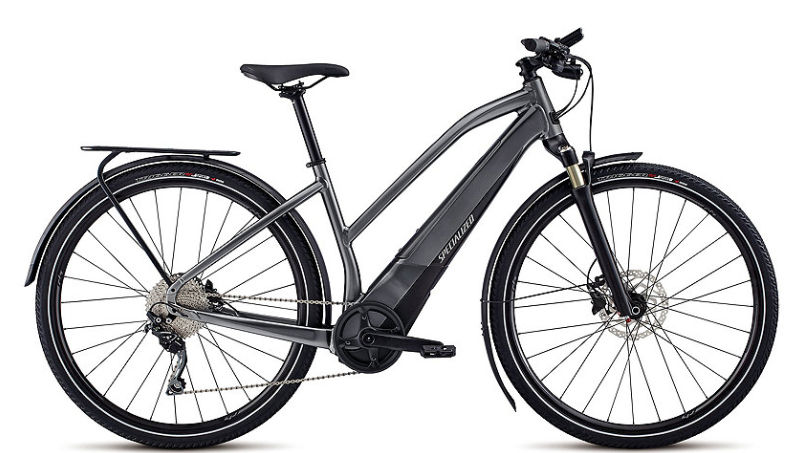

2018 Specialized Turbo Vado 3.0 Womens geometry
Full frame geometry for the 2018 Specialized Turbo Vado 3.0 Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Head angle (°) | Head tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 619 | 396 | 70 | 145 | 400 | 715 | 70 | 647 | 478 | 1116 | 44 | 86 |
| L | 629 | 428 | 70 | 155 | 485 | 727 | 70 | 683 | 478 | 1152 | 44 | 86 |
| M | 629 | 404 | 70 | 145 | 450 | 720 | 70 | 658 | 478 | 1127 | 44 | 86 |
| XL | 652 | 441 | 70 | 170 | 535 | 744 | 70 | 704 | 478 | 1173 | 44 | 86 |
All measurements in millimetres unless marked (°) for angles.
