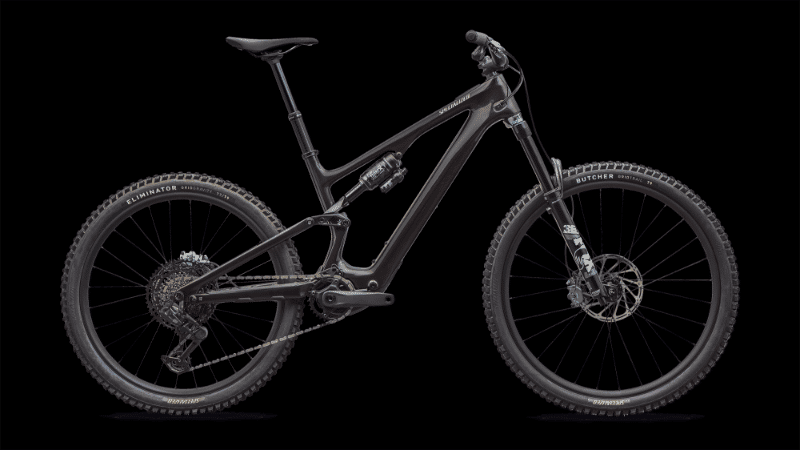

2026 Specialized Turbo Levo SL 2 geometry
Full frame geometry for the 2026 Specialized Turbo Levo SL 2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S1 | 609 | 405 | 75.8 | 64.6 | 95 | 560 | 385 | 727 | -34 | 726 | 433 | 1158 | 42 | 132 |
| S2 | 617 | 425 | 75.8 | 64.6 | 100 | 582 | 385 | 763 | -29 | 752 | 432 | 1184 | 42 | 132 |
| S3 | 626 | 445 | 75.8 | 64.6 | 110 | 604 | 405 | 766 | -29 | 776 | 432 | 1208 | 42 | 132 |
| S4 | 635 | 470 | 75.8 | 64.6 | 120 | 631 | 425 | 767 | -29 | 806 | 432 | 1238 | 42 | 132 |
| S5 | 645 | 495 | 75.8 | 64.6 | 130 | 659 | 445 | 773 | -29 | 835 | 432 | 1267 | 42 | 132 |
| S6 | 654 | 525 | 75.8 | 64.6 | 140 | 691 | 465 | 778 | -29 | 869 | 432 | 1301 | 42 | 132 |
All measurements in millimetres unless marked (°) for angles.
