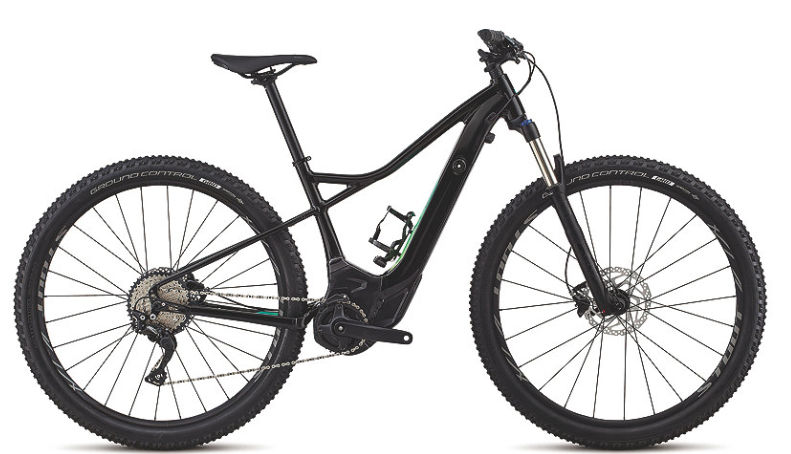

2018 Specialized Turbo Levo Hardtail 29 womens geometry
Full frame geometry for the 2018 Specialized Turbo Levo Hardtail 29 womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 598 | 385 | 74 | 67 | 100 | 568 | 390 | 688 | 55 | 450 | 1121 |
| M | 616 | 400 | 73 | 67 | 100 | 588 | 425 | 710 | 55 | 450 | 1144 |
| L | 635 | 425 | 73 | 67 | 120 | 619 | 450 | 723 | 55 | 450 | 1177 |
All measurements in millimetres unless marked (°) for angles.
