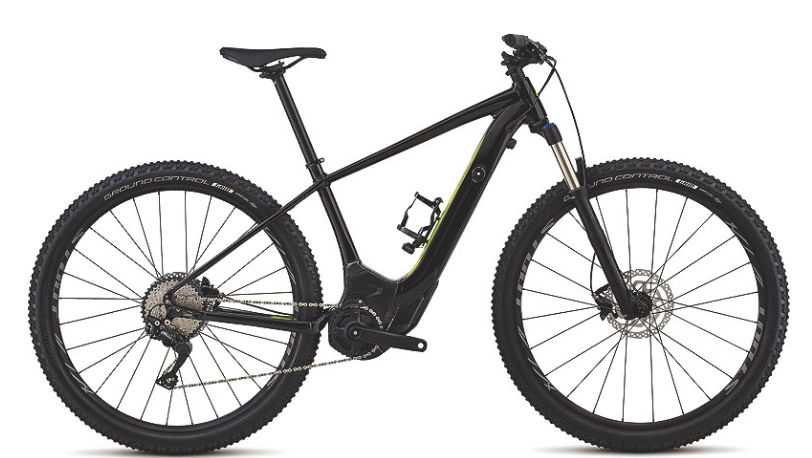

2018 Specialized Turbo Levo Hardtail 29 Mens geometry
Full frame geometry for the 2018 Specialized Turbo Levo Hardtail 29 Mens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 607 | 400 | 74 | 67 | 110 | 574 | 394 | 756 | 55 | 450 | 1140 |
| M | 616 | 420 | 73 | 67 | 100 | 608 | 434 | 786 | 55 | 450 | 1164 |
| L | 630 | 440 | 73 | 67 | 115 | 633 | 470 | 812 | 55 | 450 | 1190 |
| XL | 644 | 458 | 73 | 67 | 130 | 655 | 505 | 838 | 55 | 450 | 1213 |
All measurements in millimetres unless marked (°) for angles.
