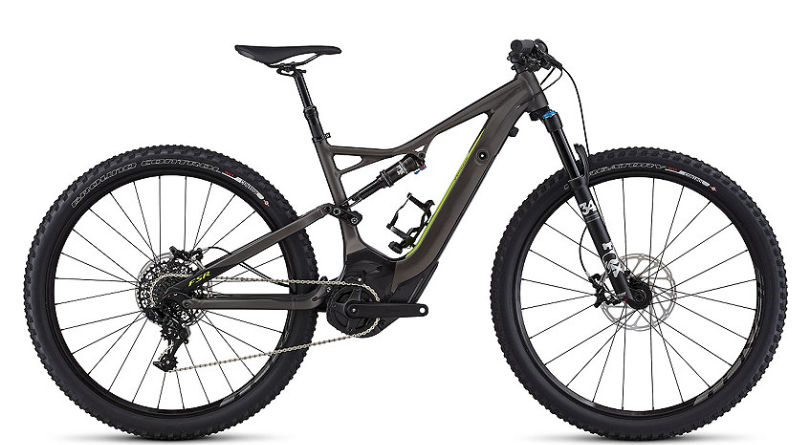

2018 Specialized Turbo Levo FSR Short Travel 29 geometry
Full frame geometry for the 2018 Specialized Turbo Levo FSR Short Travel 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 589 | 399 | 75.4 | 67.4 | 95 | 553 | 396 | 757 | 28 | 459 | 1146 |
| M | 594 | 424 | 75 | 67.4 | 100 | 577 | 435 | 767 | 28 | 459 | 1174 |
| L | 621 | 443 | 74.8 | 67.4 | 130 | 612 | 468 | 775 | 28 | 459 | 1204 |
| XL | 639 | 469 | 74.4 | 67.4 | 150 | 647 | 520 | 781 | 28 | 459 | 1238 |
All measurements in millimetres unless marked (°) for angles.
