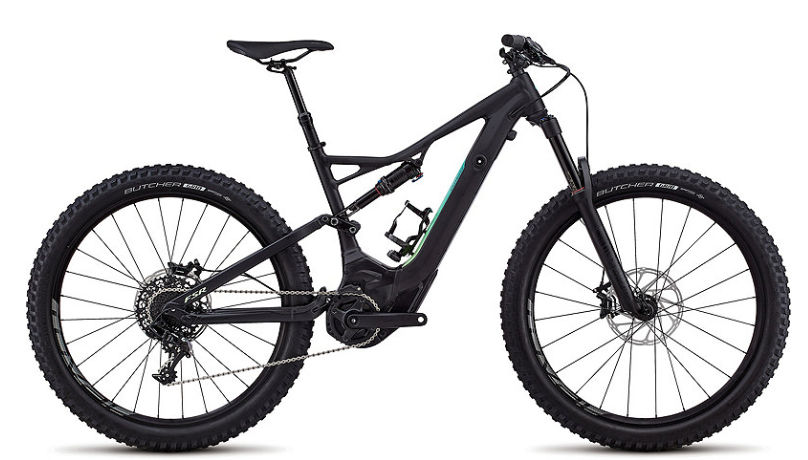

2018 Specialized Turbo Levo FSR 6Fattie/29 Womens geometry
Full frame geometry for the 2018 Specialized Turbo Levo FSR 6Fattie/29 Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 598 | 386 | 74.2 | 66.1 | 95 | 554 | 396 | 753 | 18 | 459 | 1157 |
| M | 603 | 411 | 73.9 | 66.1 | 100 | 581 | 435 | 762 | 18 | 459 | 1185 |
| L | 630 | 430 | 73.6 | 66.1 | 130 | 611 | 468 | 772 | 18 | 459 | 1215 |
All measurements in millimetres unless marked (°) for angles.
