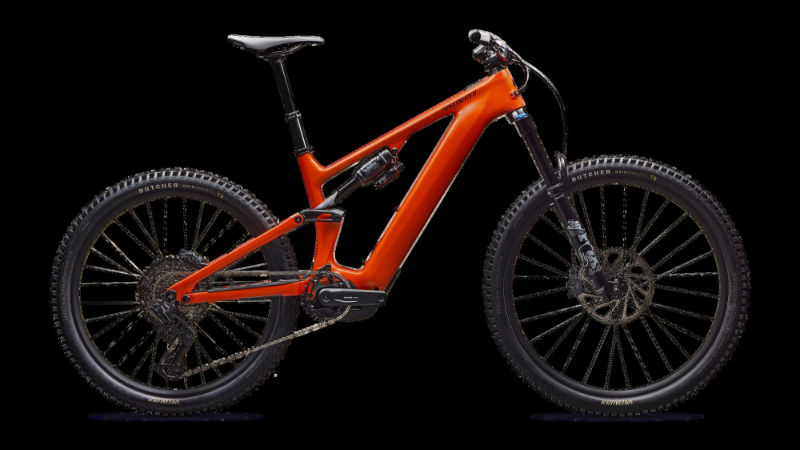

2025 Specialized Turbo Levo 4 geometry
Full frame geometry for the 2025 Specialized Turbo Levo 4, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Top tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S2 | 618 | 435 | 77 | 64.5 | 578 | 29.5 | 765 | 435 | 1200 | 44 | 132 |
| S3 | 626 | 455 | 77 | 64.5 | 602 | 29.5 | 788 | 435 | 1223 | 44 | 132 |
| S4 | 638 | 480 | 77 | 64.5 | 632 | 29.5 | 819 | 435 | 1254 | 44 | 132 |
| S5 | 652 | 505 | 77 | 64.5 | 662 | 29.5 | 851 | 435 | 1286 | 44 | 132 |
| S6 | 667 | 535 | 77 | 64.5 | 697 | 29.5 | 888 | 435 | 1323 | 44 | 132 |
All measurements in millimetres unless marked (°) for angles.
