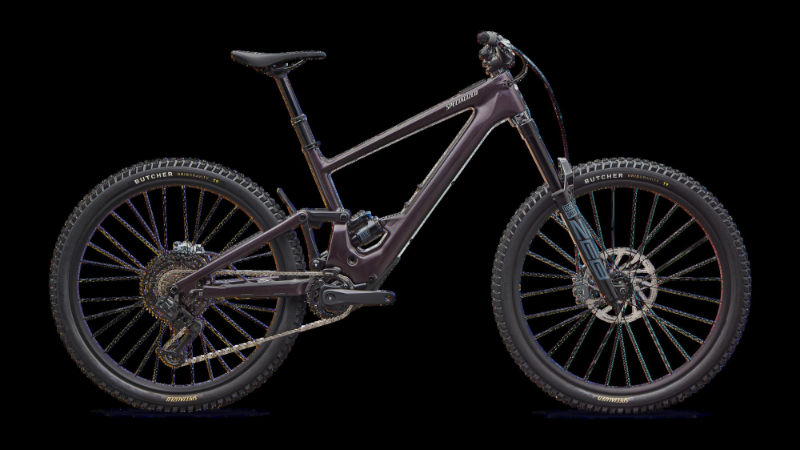

2026 Specialized Turbo Kenevo SL 2 geometry
Full frame geometry for the 2026 Specialized Turbo Kenevo SL 2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S2 | 618 | 435 | 76 | 63.5 | 105 | 400 | 792 | 25 | 782 | 447 | 1228 | 46 | 136 |
| S3 | 626 | 460 | 76 | 63.5 | 115 | 420 | 802 | 25 | 812 | 447.3 | 1258 | 46 | 136 |
| S4 | 635 | 485 | 76 | 63.5 | 125 | 440 | 779 | 25 | 841 | 447 | 1287 | 46 | 136 |
| S5 | 644 | 510 | 76 | 63.5 | 135 | 465 | 779 | 25 | 871 | 447 | 1316 | 46 | 136 |
All measurements in millimetres unless marked (°) for angles.
