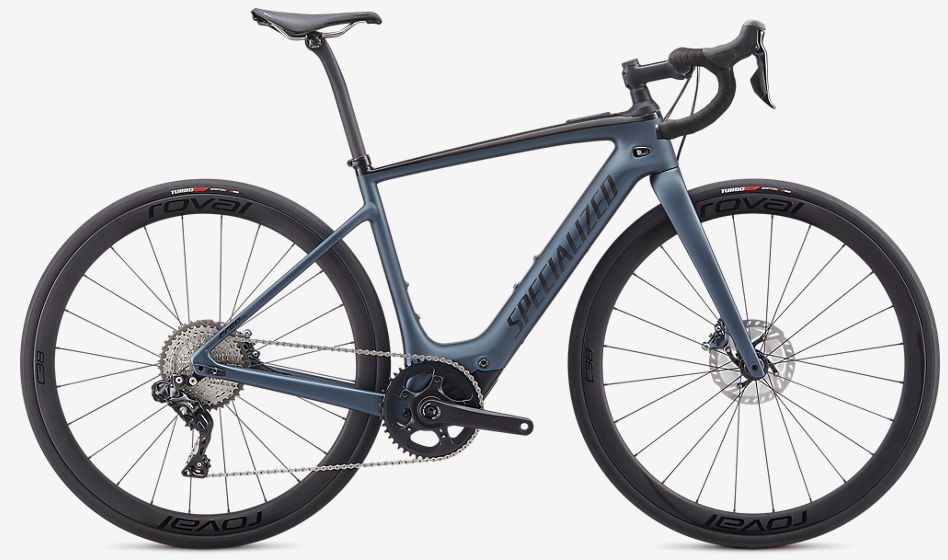

2019 Specialized Turbo Creo geometry
Full frame geometry for the 2019 Specialized Turbo Creo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 575 | 373 | 74 | 72 | 146 | 539 | 448 | 731 | 80 | 592 | 426 | 1005 | 50 | 60 |
| M | 592 | 379 | 74 | 72.5 | 164 | 548 | 478 | 759 | 78 | 598 | 426 | 1012 | 50 | 56 |
| L | 615 | 384 | 73.5 | 73 | 186 | 566 | 502 | 782 | 78 | 605 | 427 | 1020 | 50 | 53 |
| XL | 643 | 391 | 73.5 | 73 | 217 | 581 | 528 | 810 | 76 | 621 | 427 | 1036 | 50 | 53 |
| XXL | 675 | 399 | 73 | 73 | 250 | 605 | 558 | 840 | 76 | 636 | 428 | 1052 | 50 | 52 |
All measurements in millimetres unless marked (°) for angles.
