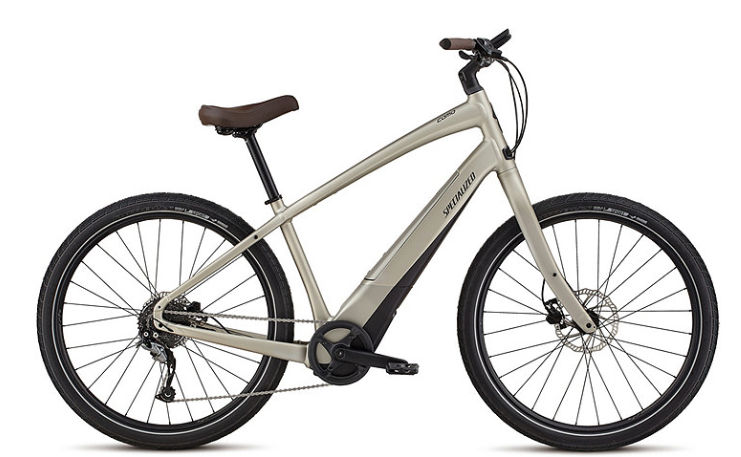

2018 Specialized Turbo Como 2.0 geometry
Full frame geometry for the 2018 Specialized Turbo Como 2.0, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 667 | 337 | 68 | 68 | 190 | 620 | 420 | 811 | 75 | 485 | 1103 |
| ML | 699 | 363 | 68 | 68 | 225 | 660 | 450 | 835 | 75 | 485 | 1142 |
| XL | 750 | 372 | 68 | 68 | 280 | 690 | 500 | 884 | 75 | 485 | 1171 |
All measurements in millimetres unless marked (°) for angles.
