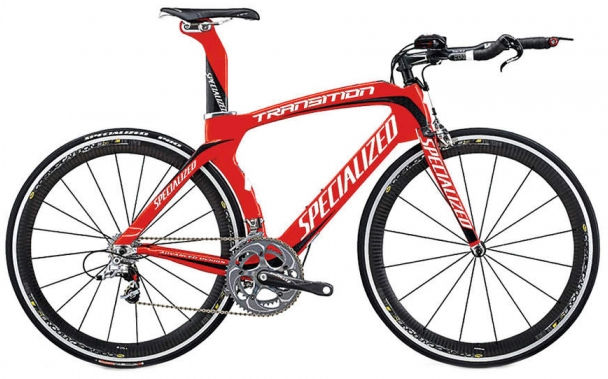

2013 Specialized Transition Carbon geometry
Full frame geometry for the 2013 Specialized Transition Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 487 | 365 | 77 | 69.5 | 75 | 445 | 719 | 72 | 577 | 395 | 961 | 74 |
| S | 505 | 380 | 77 | 71.5 | 90 | 445 | 761 | 72 | 575 | 395 | 961 | 68 |
| M | 516 | 395 | 77.5 | 72 | 100 | 445 | 763 | 72 | 589 | 395 | 975 | 65 |
| L | 526 | 405 | 78 | 72 | 100 | 445 | 768 | 72 | 602 | 395 | 988 | 65 |
| XL | 542 | 421 | 78.5 | 72.5 | 110 | 475 | 793 | 72 | 621 | 395 | 1007 | 61 |
All measurements in millimetres unless marked (°) for angles.
