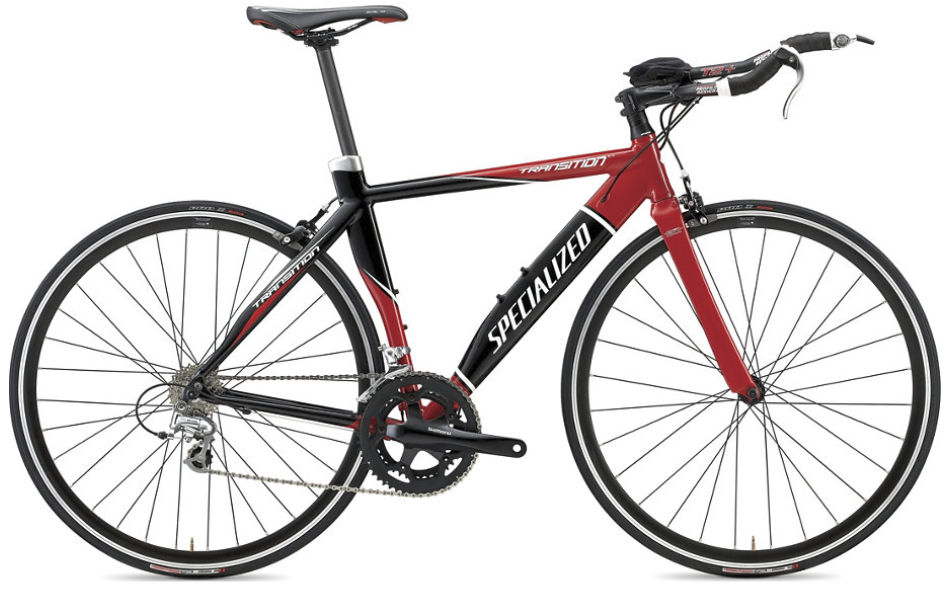

2010 Specialized Transition Alloy MKII geometry
Full frame geometry for the 2010 Specialized Transition Alloy MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 484 | 365 | 77 | 69.5 | 90 | 479 | 470 | 712 | 72 | 576 | 400 | 965 | 49 | 75 |
| S | 503 | 380 | 76.2 | 71.5 | 100 | 504 | 480 | 725 | 72 | 576 | 400 | 965 | 45 | 66 |
| M | 516 | 395 | 76 | 72 | 115 | 523 | 490 | 738 | 70 | 592 | 400 | 981 | 45 | 63 |
| L | 538 | 405 | 76 | 72.5 | 135 | 539 | 500 | 754 | 70 | 602 | 405 | 996 | 43 | 62 |
| XL | 560 | 425 | 76 | 72.5 | 160 | 564 | 520 | 776 | 68 | 629 | 405 | 1024 | 43 | 62 |
| XXL | 583 | 450 | 76 | 72.5 | 185 | 593 | 550 | 803 | 68 | 660 | 410 | 1061 | 43 | 62 |
All measurements in millimetres unless marked (°) for angles.
