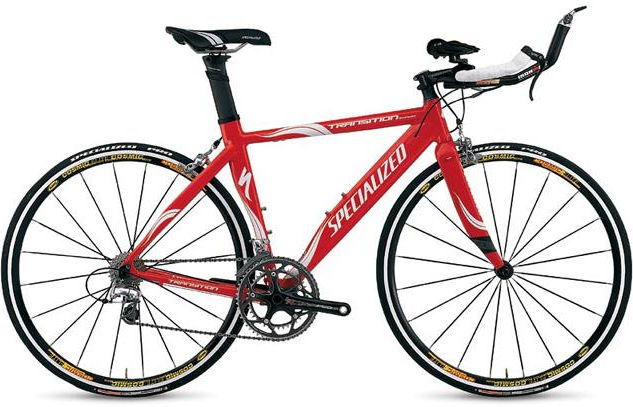

2007 Specialized Transition Alloy MKI geometry
Full frame geometry for the 2007 Specialized Transition Alloy MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 496 | 383 | 76.8 | 71.5 | 90 | 500 | 470 | 721 | 72 | 575 | 400 | 964 | 45 | 66 |
| 52 | 507 | 396 | 76.2 | 72 | 100 | 520 | 480 | 731 | 72 | 589 | 400 | 978 | 45 | 63 |
| 54 | 520 | 404 | 76 | 72 | 115 | 534 | 490 | 744 | 70 | 602 | 400 | 992 | 45 | 63 |
| 56 | 541 | 413 | 76 | 72.5 | 135 | 548 | 500 | 759 | 70 | 611 | 405 | 1006 | 43 | 62 |
| 58 | 563 | 418 | 75.5 | 72.5 | 160 | 564 | 520 | 781 | 68 | 623 | 405 | 1019 | 43 | 62 |
| 61 | 587 | 427 | 75 | 72.5 | 185 | 584 | 550 | 807 | 68 | 639 | 410 | 1040 | 43 | 62 |
All measurements in millimetres unless marked (°) for angles.
