2021 Specialized · RD

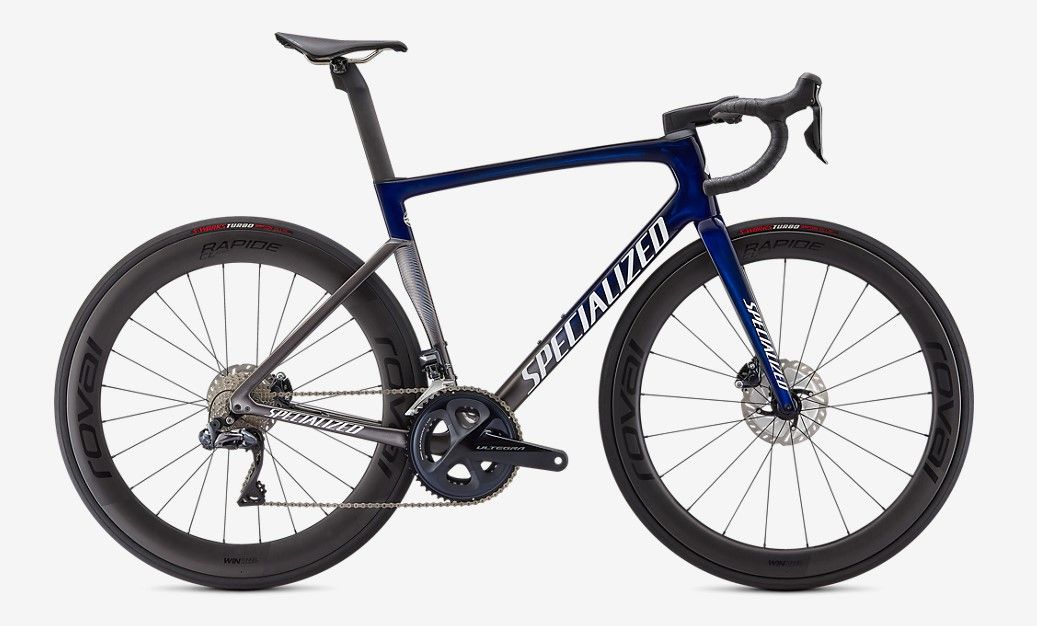

2021 Specialized Tarmac SL7 geometry
Full frame geometry for the 2021 Specialized Tarmac SL7, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 491 | 369 | 75.5 | 70.5 | 93 | 496 | 435 | 723 | 74 | 572 | 410 | 970 | 47 | 71 |
| 49 | 504 | 378 | 75.5 | 71.8 | 102 | 509 | 447 | 735 | 74 | 574 | 410 | 973 | 47 | 63 |
| 52 | 517 | 383 | 74 | 72.5 | 113 | 531 | 458 | 746 | 74 | 577 | 410 | 975 | 47 | 58 |
| 54 | 534 | 387 | 74 | 73 | 131 | 541 | 475 | 768 | 72 | 579 | 410 | 978 | 44 | 58 |
| 56 | 555 | 398 | 73.5 | 73.5 | 151 | 563 | 496 | 786 | 72 | 592 | 410 | 991 | 44 | 55 |
| 58 | 581 | 405 | 73.5 | 73.5 | 178 | 577 | 517 | 808 | 72 | 606 | 410 | 1006 | 44 | 55 |
| 61 | 602 | 411 | 73 | 74 | 198 | 595 | 547 | 834 | 72 | 613 | 410 | 1013 | 44 | 52 |
All measurements in millimetres unless marked (°) for angles.
