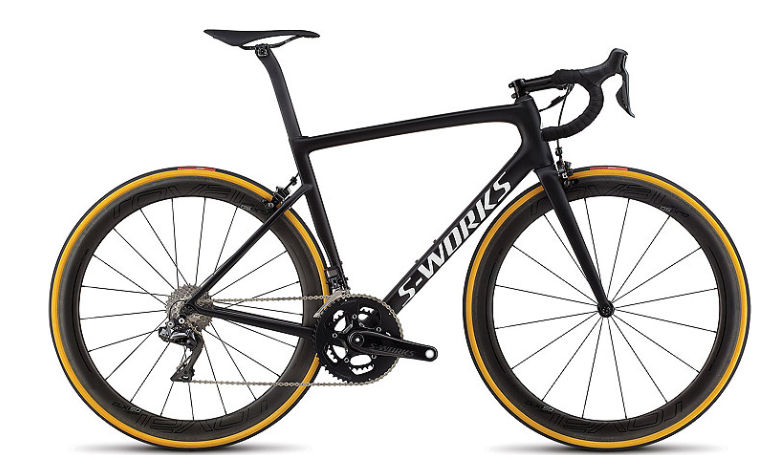

2018 Specialized Tarmac SL6 geometry
Full frame geometry for the 2018 Specialized Tarmac SL6, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 514 | 375 | 76 | 71.8 | 115 | 508 | 431 | 740 | 74 | 574 | 405 | 968 | 47 | 63 |
| 52 | 527 | 380 | 74 | 72.5 | 126 | 531 | 462 | 755 | 74 | 577 | 405 | 970 | 47 | 58 |
| 54 | 544 | 384 | 74 | 73 | 143 | 540 | 481 | 775 | 72 | 579 | 405 | 973 | 44 | 58 |
| 56 | 565 | 395 | 74 | 73.5 | 163 | 562 | 501 | 795 | 72 | 591 | 405 | 985 | 44 | 55 |
| 58 | 591 | 402 | 74 | 73.5 | 190 | 577 | 522 | 826 | 72 | 606 | 407 | 1002 | 44 | 55 |
| 61 | 612 | 408 | 73 | 74 | 210 | 595 | 553 | 850 | 72 | 613 | 410 | 1012 | 44 | 52 |
All measurements in millimetres unless marked (°) for angles.
