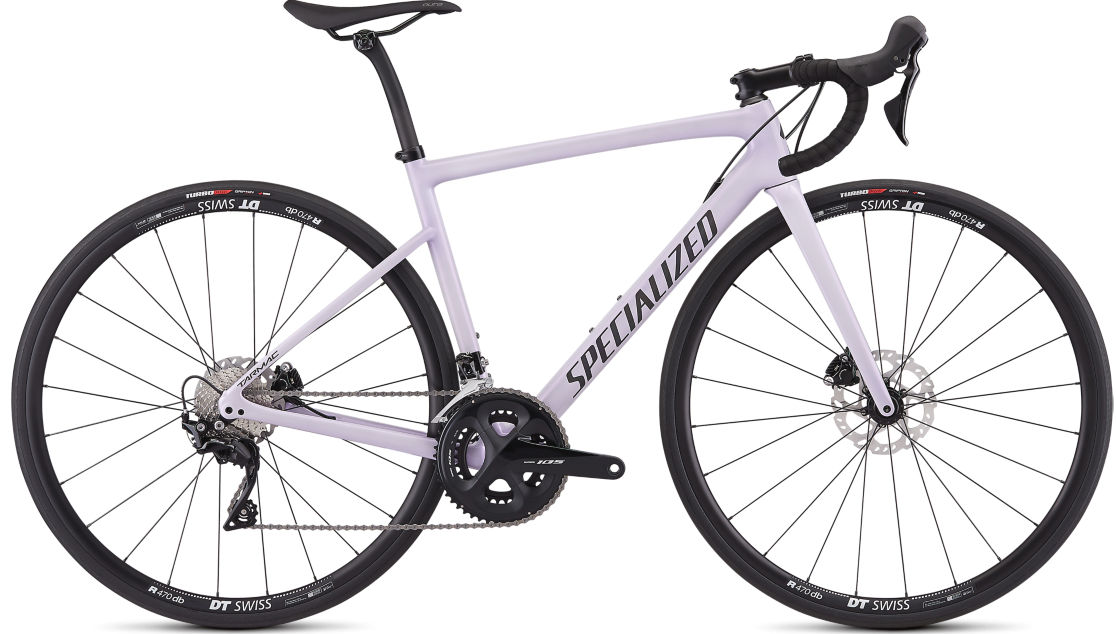

2018 Specialized Tarmac SL6 Disc Womens geometry
Full frame geometry for the 2018 Specialized Tarmac SL6 Disc Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 500 | 365 | 76 | 71 | 105 | 490 | 400 | 730 | 74 | 571 | 410 | 969 | 47 | 71 |
| 49 | 514 | 375 | 76 | 72 | 115 | 508 | 431 | 740 | 74 | 574 | 410 | 973 | 47 | 63 |
| 52 | 527 | 380 | 74 | 73 | 126 | 531 | 462 | 755 | 74 | 577 | 410 | 975 | 47 | 58 |
| 54 | 544 | 384 | 74 | 73 | 143 | 540 | 481 | 775 | 72 | 579 | 410 | 972 | 44 | 58 |
| 56 | 565 | 395 | 74 | 74 | 163 | 562 | 501 | 795 | 72 | 591 | 410 | 990 | 44 | 55 |
All measurements in millimetres unless marked (°) for angles.
