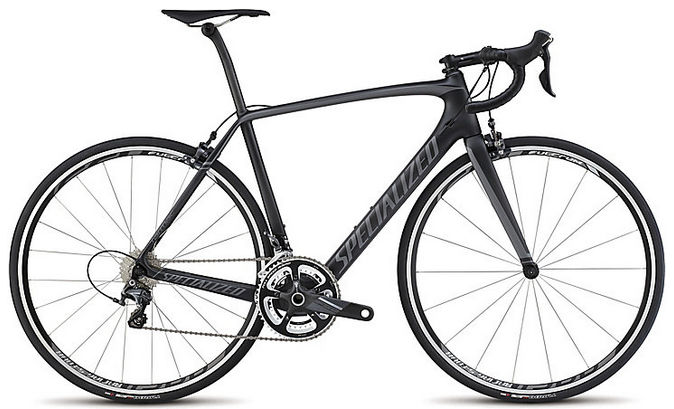

2014 Specialized Tarmac SL5 S-Works geometry
Full frame geometry for the 2014 Specialized Tarmac SL5 S-Works, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 504 | 386 | 75.5 | 72.3 | 100 | 518 | 431 | 730 | 72 | 576 | 405 | 970 | 45 | 62 |
| 52 | 526 | 386 | 74 | 73 | 120 | 537 | 462 | 755 | 72 | 576 | 405 | 970 | 45 | 57 |
| 54 | 543 | 387 | 73.5 | 73 | 140 | 548 | 481 | 775 | 69 | 583 | 405 | 978 | 45 | 57 |
| 56 | 564 | 395 | 73.3 | 73.5 | 160 | 565 | 501 | 795 | 69 | 591 | 405 | 986 | 43 | 56 |
| 58 | 591 | 402 | 73 | 73.5 | 190 | 582 | 522 | 826 | 68 | 605 | 407 | 1003 | 43 | 56 |
| 61 | 612 | 408 | 72.5 | 74 | 210 | 600 | 553 | 850 | 68 | 612 | 410 | 1013 | 43 | 53 |
| 64 | 636 | 415 | 72.5 | 74.5 | 235 | 621 | 584 | 850 | 68 | 645 | 410 | 1016 | 43 | 50 |
All measurements in millimetres unless marked (°) for angles.
