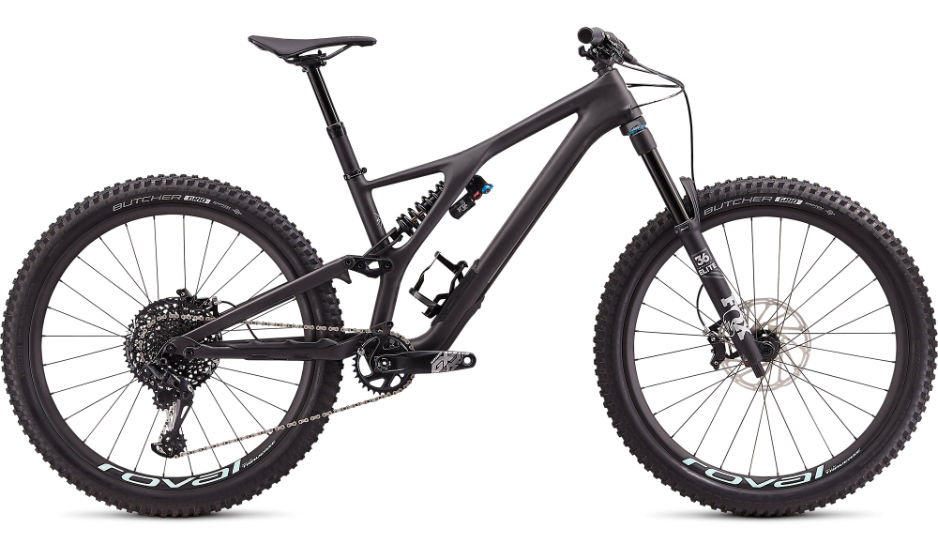

2019 Specialized Stumpjumper EVO Pro 29 geometry
Full frame geometry for the 2019 Specialized Stumpjumper EVO Pro 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S2 | 619 | 445 | 76 | 63.5 | 100 | 599 | 400 | 743 | 47 | 781 | 443 | 1220 | 44 | 138 |
| S3 | 623 | 475 | 75.6 | 63.5 | 105 | 635 | 450 | 756 | 47 | 813 | 443 | 1252 | 44 | 138 |
All measurements in millimetres unless marked (°) for angles.
