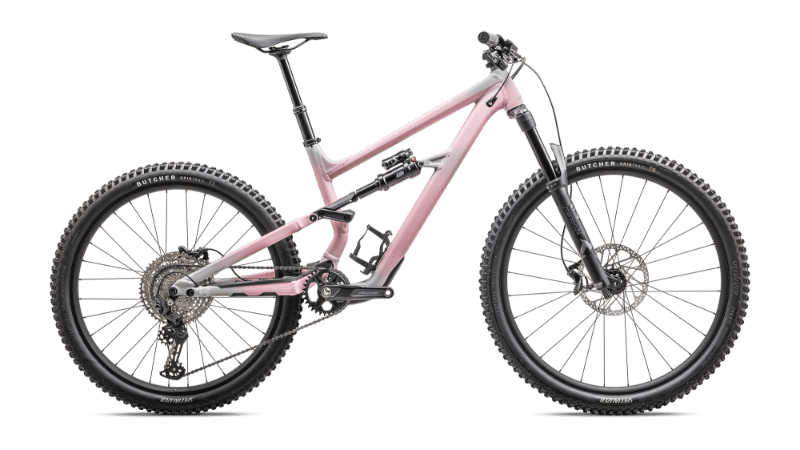

2026 Specialized Status 2 140 geometry
Full frame geometry for the 2026 Specialized Status 2 140, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S1 | 601 | 421 | 77.6 | 64.5 | 100 | 549 | 390 | 735 | 30 | 741 | 431 | 1168 | 44 | 130 |
| S2 | 605 | 446 | 77.6 | 64.5 | 105 | 590 | 400 | 735 | 30 | 768 | 431 | 1195 | 44 | 130 |
| S3 | 614 | 471 | 77.6 | 64.5 | 115 | 630 | 420 | 739 | 30 | 798 | 431 | 1225 | 44 | 130 |
| S4 | 623 | 496 | 77.6 | 64.5 | 125 | 671 | 440 | 743 | 30 | 827 | 436 | 1259 | 44 | 130 |
| S5 | 632 | 521 | 77.6 | 64.5 | 135 | 711 | 465 | 747 | 30 | 857 | 436 | 1288 | 44 | 130 |
All measurements in millimetres unless marked (°) for angles.
