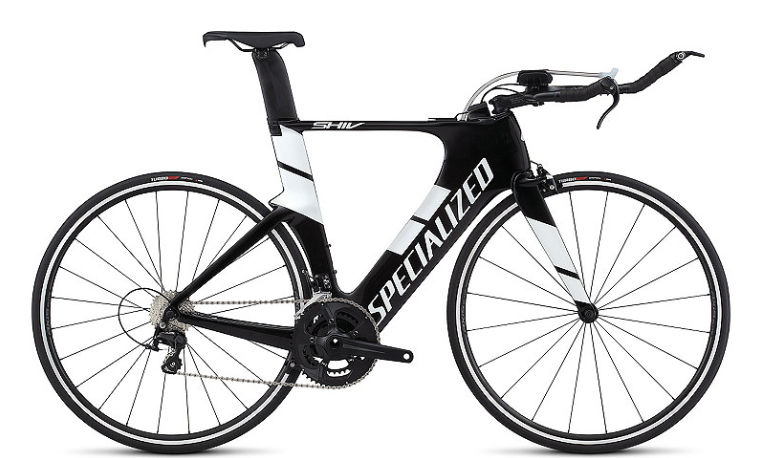

2013 Specialized Shiv geometry
Full frame geometry for the 2013 Specialized Shiv, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 495 | 365 | 77 | 70.2 | 99 | 479 | 505 | 752 | 72 | 574 | 395 | 958 | 50 | 65 |
| S | 514 | 385 | 77 | 71.5 | 115 | 504 | 525 | 772 | 72 | 590 | 395 | 974 | 50 | 58 |
| M | 540 | 405 | 77 | 72 | 139 | 530 | 551 | 797 | 72 | 609 | 395 | 993 | 45 | 60 |
| L | 565 | 425 | 77 | 72.5 | 163 | 555 | 577 | 822 | 72 | 632 | 395 | 1016 | 45 | 57 |
| XL | 590 | 445 | 77 | 72.5 | 189 | 581 | 603 | 847 | 72 | 659 | 395 | 1044 | 45 | 57 |
All measurements in millimetres unless marked (°) for angles.
