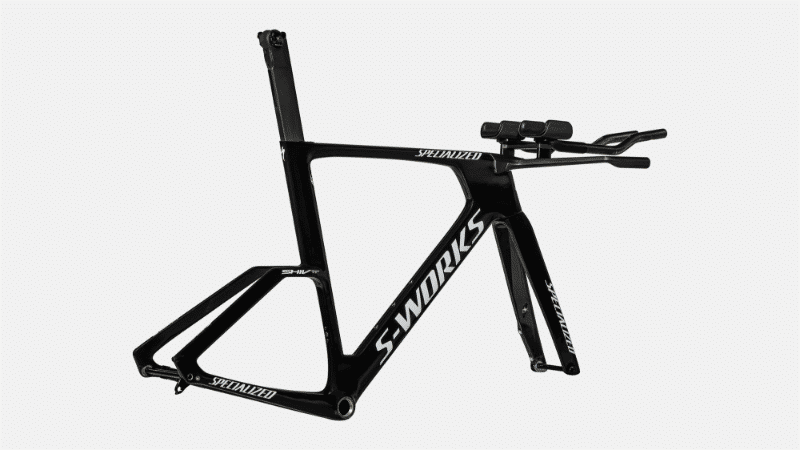

2026 Specialized Shiv TT geometry
Full frame geometry for the 2026 Specialized Shiv TT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 485 | 378 | 74.5 | 71 | 90 | 512 | 504 | 769 | 70 | 573 | 410 | 972 | 45 | 70 |
| L | 495 | 420 | 75.8 | 72 | 95 | 546 | 562 | 802 | 72 | 609 | 410 | 1008 | 45 | 63 |
| M | 495 | 405 | 75 | 72 | 95 | 538 | 563 | 802 | 72 | 594 | 410 | 993 | 45 | 63 |
| S | 495 | 390 | 74.5 | 72 | 95 | 527 | 564 | 802 | 72 | 579 | 410 | 978 | 45 | 63 |
All measurements in millimetres unless marked (°) for angles.
