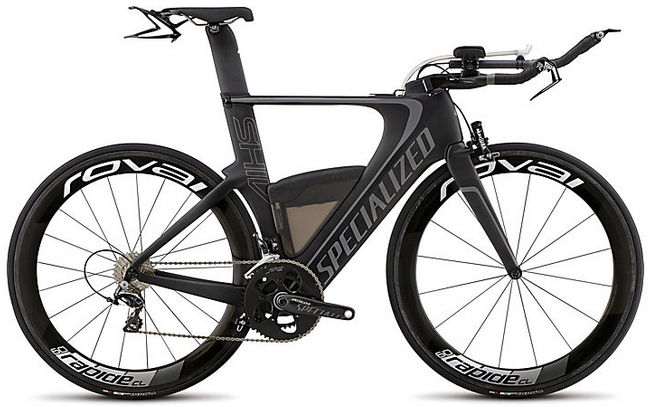

2013 Specialized Shiv S-Works geometry
Full frame geometry for the 2013 Specialized Shiv S-Works, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 495 | 365 | 77 | 70.3 | 99 | 481 | 505 | 752 | 72 | 573 | 395 | 957 | 50 | 69 |
| S | 515 | 385 | 77 | 71.5 | 115 | 504 | 525 | 772 | 72 | 589 | 395 | 973 | 50 | 61 |
| M | 540 | 405 | 77 | 72 | 139 | 530 | 551 | 797 | 72 | 608 | 395 | 992 | 45 | 63 |
| L | 565 | 425 | 77 | 72.5 | 163 | 557 | 577 | 822 | 72 | 631 | 395 | 1016 | 45 | 60 |
| XL | 590 | 445 | 77 | 72.5 | 189 | 582 | 603 | 847 | 72 | 659 | 395 | 1043 | 45 | 60 |
All measurements in millimetres unless marked (°) for angles.
