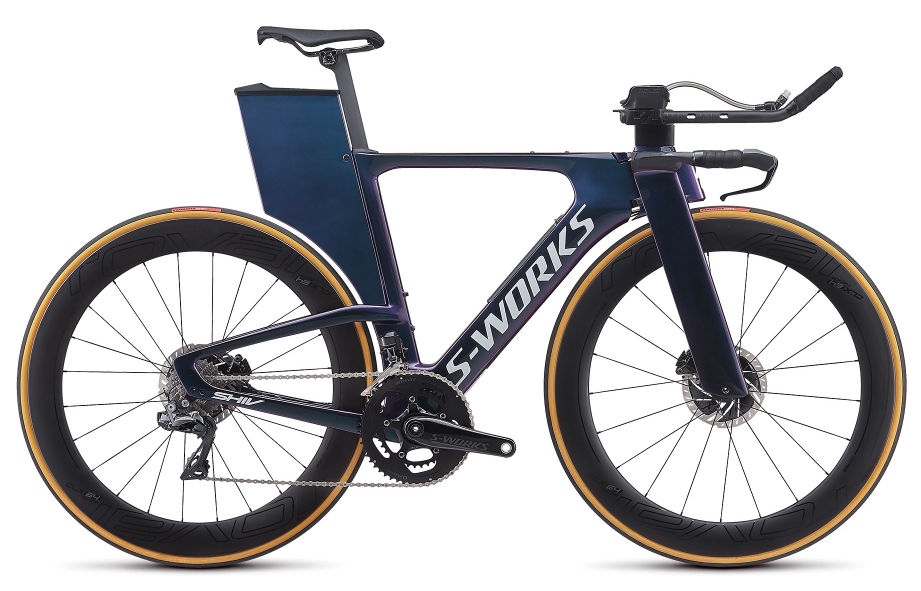

2019 Specialized Shiv Disc geometry
Full frame geometry for the 2019 Specialized Shiv Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 484 | 372 | 77 | 70.2 | 70 | 484 | 490 | 752 | 72 | 578 | 415 | 982 | 50 | 68 |
| S | 490 | 386 | 77 | 72 | 70 | 499 | 522 | 774 | 72 | 579 | 415 | 983 | 50 | 57 |
| M | 514 | 401 | 77 | 72 | 94 | 520 | 547 | 798 | 72 | 596 | 415 | 1001 | 45 | 62 |
| L | 546 | 421 | 77 | 72 | 127 | 547 | 580 | 830 | 72 | 627 | 415 | 1031 | 45 | 62 |
All measurements in millimetres unless marked (°) for angles.
