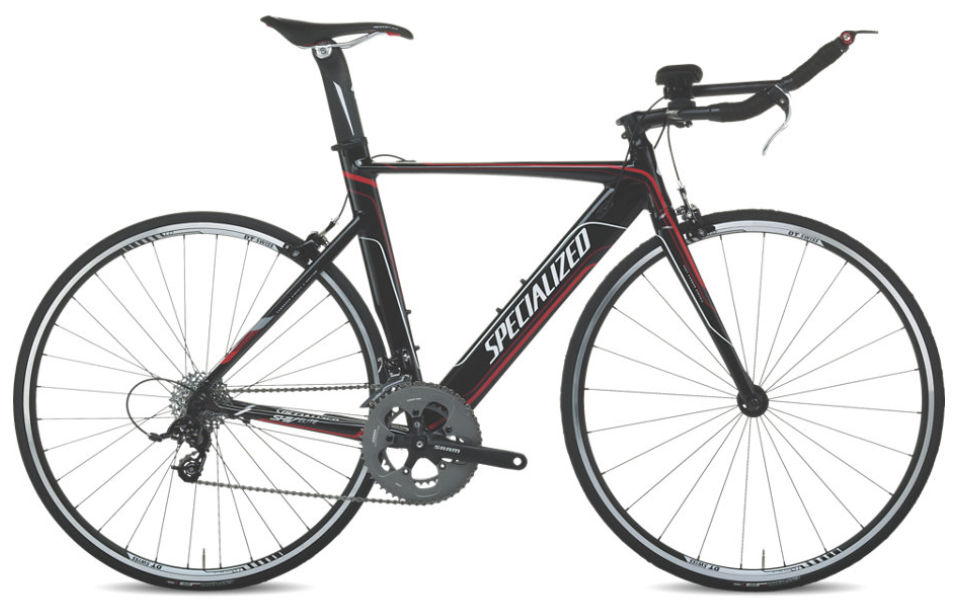

2013 Specialized Shiv Alloy geometry
Full frame geometry for the 2013 Specialized Shiv Alloy, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 495 | 365 | 77 | 70.2 | 98 | 484 | 485 | 725 | 72 | 575 | 395 | 959 | 50 | 68 |
| S | 515 | 385 | 77 | 71.5 | 114 | 508 | 545 | 761 | 72 | 590 | 395 | 974 | 50 | 60 |
| M | 540 | 405 | 77 | 72 | 137 | 533 | 570 | 786 | 72 | 609 | 395 | 993 | 45 | 63 |
| L | 565 | 425 | 77 | 72.5 | 161 | 559 | 597 | 812 | 72 | 632 | 395 | 1016 | 45 | 59 |
| XL | 590 | 445 | 77 | 72.5 | 187 | 585 | 622 | 836 | 72 | 660 | 395 | 1044 | 45 | 59 |
All measurements in millimetres unless marked (°) for angles.
