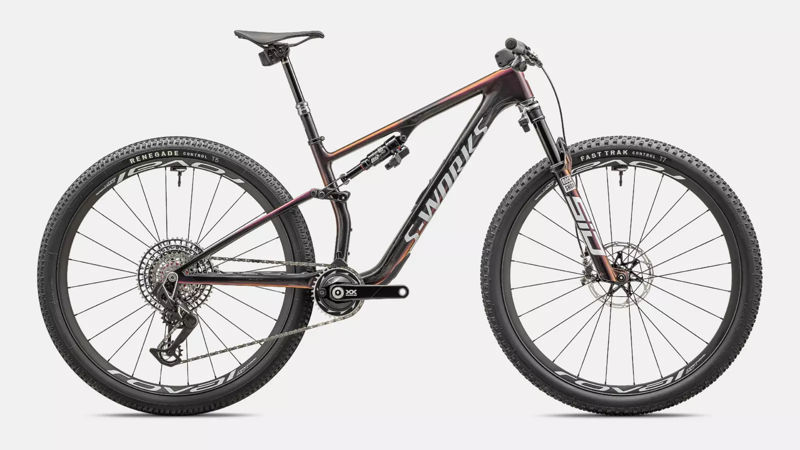

2025 Specialized S-Works Epic 8 geometry
Full frame geometry for the 2025 Specialized S-Works Epic 8, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 597 | 420 | 76 | 65.9 | 92 | 569 | 383 | 46 | 716 | 435 | 1147 | 117 |
| M | 598 | 450 | 75.5 | 65.9 | 95 | 605 | 388 | 44 | 747 | 435 | 1179 | 117 |
| XS | 603 | 390 | 76.5 | 65.9 | 92 | 535 | 376 | 52 | 687 | 435 | 1117 | 117 |
| L | 610 | 475 | 75.5 | 65.9 | 110 | 633 | 397 | 42 | 778 | 435 | 1210 | 117 |
| XL | 628 | 500 | 75.5 | 65.9 | 130 | 662 | 402 | 42 | 811 | 435 | 1243 | 117 |
All measurements in millimetres unless marked (°) for angles.
