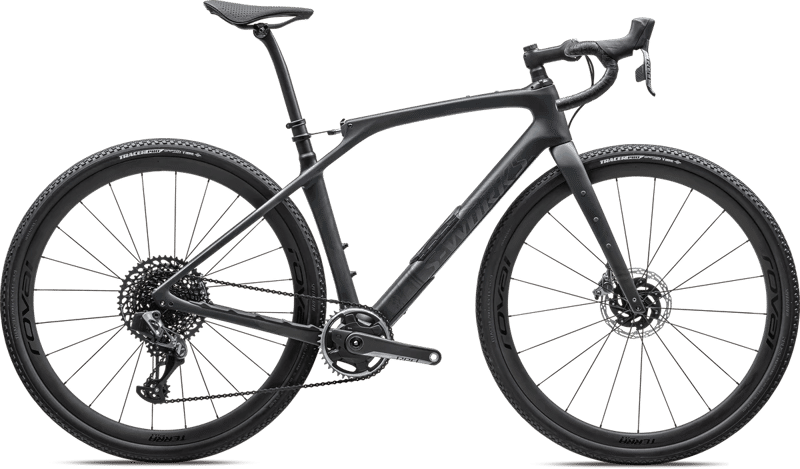

2023 Specialized S-Works Diverge STR geometry
Full frame geometry for the 2023 Specialized S-Works Diverge STR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 569 | 365 | 74.5 | 70 | 100 | 527 | 390 | 704 | 80 | 607 | 429 | 1023 | 69 |
| 52 | 576 | 374 | 74.3 | 70.5 | 100 | 540 | 430 | 730 | 85 | 612 | 429 | 1027 | 66 |
| 54 | 593 | 383 | 74 | 71.3 | 115 | 556 | 470 | 753 | 85 | 619 | 429 | 1034 | 61 |
| 56 | 609 | 392 | 74 | 71.8 | 130 | 570 | 500 | 778 | 85 | 629 | 429 | 1044 | 57 |
| 58 | 633 | 401 | 74 | 71.8 | 155 | 586 | 530 | 804 | 85 | 645 | 429 | 1060 | 57 |
| 61 | 659 | 410 | 74 | 71.8 | 182 | 602 | 560 | 833 | 85 | 663 | 429 | 1078 | 57 |
All measurements in millimetres unless marked (°) for angles.
